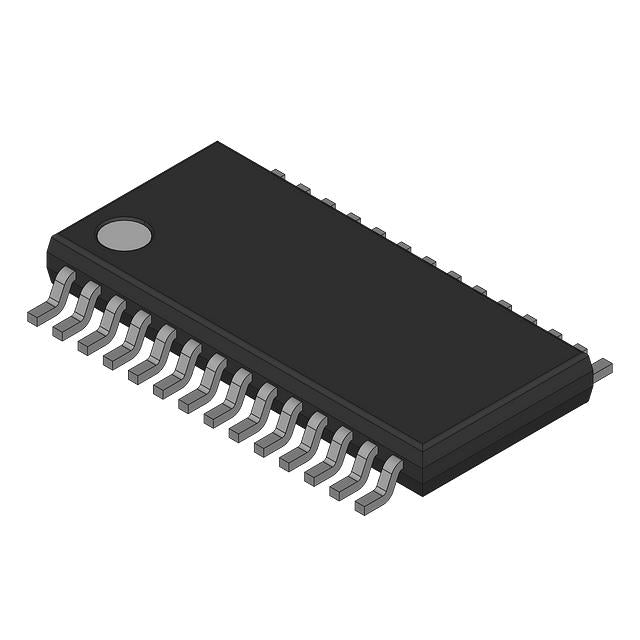

Analog Devices Inc./Maxim Integrated MAX1065AEUI
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.14 | $14.14 |
| 15+ | $13.69 | $205.35 |
| 25+ | $13.39 | $334.75 |
| 50+ | $12.65 | $632.50 |
| 100+ | $11.16 | $1,116.00 |
| N+ | $2.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 165k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
The MAX1065AEUI is a high-performance 14-bit analog-to-digital converter with a maximum sampling rate of 165k SPS. Featuring a single input channel and sample-and-hold architecture, it delivers exceptional accuracy for demanding measurement applications. The parallel interface ensures rapid data transfer to host processors, making it ideal for real-time systems. With both external and internal reference options, it offers flexibility in precision design. Housed in a 28-TSSOP package and rated for -40°C to +85°C, this ADC is engineered for industrial, medical, and test equipment requiring high-resolution signal digitization.
- High Resolution: 14-bit resolution provides 4x more precision than standard 12-bit ADCs, enabling detection of very small signal variations.
- Fast Sampling: 165k SPS rate captures rapid signal changes, suitable for real-time control and measurement.
- High-Speed Interface: Parallel output allows immediate data access without serial conversion delays, critical for high-throughput systems.
- Wide Temperature Operation: -40°C to +85°C range ensures reliable performance in harsh environments.
High-Precision Industrial Data Acquisition
The 14-bit resolution and 165k SPS sampling rate make the MAX1065AEUI ideal for high-precision industrial data acquisition systems. It can accurately digitize fast transient signals in motor control or power monitoring applications where 12-bit ADCs are insufficient.
Medical Instrumentation
In medical devices like ultrasound machines and patient monitors, the 14-bit resolution provides the dynamic range needed for detecting subtle physiological signals. The parallel interface enables fast data streaming to real-time processing units.
Test and Measurement Equipment
For benchtop multimeters, spectrum analyzers, and oscilloscopes, this ADC's combination of 165k SPS speed and 14-bit accuracy allows capturing both amplitude and timing details of waveforms with high fidelity.
Automotive Sensor Signal Conditioning
In automotive test systems, the wide temperature range (-40°C to +85°C) and high resolution support precise measurement of engine parameters, battery characteristics, and vibration sensors in development and validation rigs.
Communication Systems
The parallel output and high sampling rate enable use in baseband signal processing for software-defined radio and communication test equipment, where wide dynamic range is critical for handling varying signal strengths.
Precision Weighing and Force Measurement
The 14-bit resolution allows detecting minute changes in load cell outputs, making it suitable for industrial scales and force measurement systems that require high accuracy and fast response.
- Q: What is the resolution of the MAX1065AEUI?
- A: It is a 14-bit analog-to-digital converter, providing 16384 discrete levels for high-precision measurements.
- Q: What is the maximum sampling rate?
- A: The MAX1065AEUI achieves a maximum sampling rate of 165k SPS, suitable for high-speed data acquisition.
- Q: How many input channels does it have?
- A: It has a single input channel (1 channel), making it ideal for dedicated high-accuracy signal digitization.
- Q: What digital interface does it use?
- A: It uses a parallel interface, providing high-speed data transfer to microprocessors or DSPs.
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H-ADC) architecture, ensuring accurate conversion of fast-changing analog signals.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +85°C and is available in a 28-TSSOP package.
