Analog Devices Inc./Maxim Integrated MAX1111CEE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.47 | $3.47 |
| 15+ | $3.36 | $50.40 |
| 25+ | $3.29 | $82.25 |
| 50+ | $3.10 | $155.00 |
| 100+ | $2.74 | $274.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| ROHS |  |

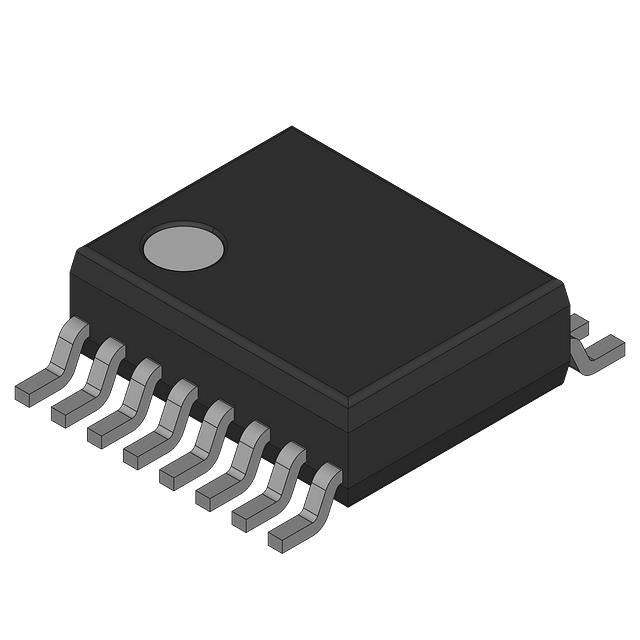

The MAX1111CEE+ from Analog Devices/Maxim Integrated is an 8-bit ADC with a built-in multiplexer supporting 2 or 4 input channels. It features a maximum sampling rate of 50k SPS and communicates via an SPI interface. The device supports both external and internal voltage references, offering design flexibility. Operating from 0°C to 70°C, it is packaged in a 16-SSOP. This ADC is well-suited for multi-sensor data acquisition and industrial control applications.
- Multi-Channel Input: 2 or 4 channel MUX reduces external component count.
- Flexible Reference: Supports external or internal reference for design versatility.
- Low Power Consumption: Extends battery life in portable applications.
- SPI Interface: Simplifies connection to standard microcontrollers.
- Compact SSOP Package: Suitable for space-limited PCB layouts.
Multi-Sensor Monitoring
The 4-channel multiplexer allows the MAX1111CEE+ to monitor up to four analog sensors, making it perfect for environmental monitoring stations.
Industrial Automation
With 50k SPS and SPI output, this ADC can digitize control signals in industrial automation systems, providing reliable data to PLCs.
Battery Management Systems
The low-speed, multi-channel capability is ideal for monitoring battery cell voltages in battery management systems.
Portable Data Loggers
Its low power consumption and small SSOP package make it suitable for portable data logging devices.
Consumer Electronics
Used in appliances and consumer devices for converting analog user inputs (knobs, sliders) to digital signals.
- Q: What is the MAX1111CEE+ ADC type?
- A: It is an 8-bit analog-to-digital converter with a multiplexer and sample-and-hold (MUX-S/H-ADC) architecture.
- Q: What is the resolution?
- A: The resolution is 8 bits, offering 256 discrete levels.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 50k SPS.
- Q: How many channels are available?
- A: It supports 2 or 4 multiplexed input channels.
- Q: What interface does it use?
- A: It uses an SPI-compatible serial interface.
- Q: What is the package?
- A: It comes in a 16-SSOP (0.154", 3.90mm Width) package.
