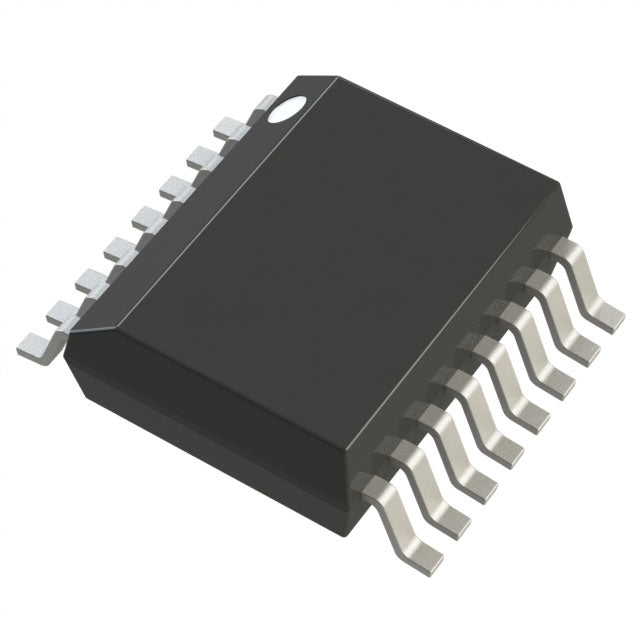

Analog Devices Inc./Maxim Integrated MAX11209EEE+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.30 | $14.30 |
| 15+ | $3.29 | $49.35 |
| 25+ | $3.22 | $80.50 |
| 50+ | $3.04 | $152.00 |
| 100+ | $2.69 | $269.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 480 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| ROHS |  |
The MAX11209EEE+T is a high-performance 18-bit analog-to-digital converter from Analog Devices Inc./Maxim Integrated. It offers a sampling rate of 480 SPS and a single input channel, making it perfect for precision measurement applications. The device communicates via a standard SPI interface and requires an external voltage reference for operation. Housed in a compact 16-SSOP package, it operates reliably across a wide temperature range of -40°C to 85°C. Typical applications include industrial process control, portable instrumentation, and medical sensing systems.
- High Resolution: 18-bit resolution provides exceptional accuracy for demanding measurement applications.
- Low Power Operation: Designed for battery-powered devices, extending operational life in portable equipment.
- SPI Interface: Simple digital interface ensures easy integration with most microcontrollers and DSPs.
- Wide Temperature Range: Reliable performance from -40°C to 85°C for industrial environments.
Precision Sensor Signal Digitization
The 18-bit resolution and 480 SPS sampling rate make the MAX11209EEE+T ideal for digitizing precision sensors like strain gauges and load cells, ensuring high accuracy in industrial weighing systems.
Portable Instrumentation
With a single channel and SPI interface, this ADC is well-suited for portable data loggers and handheld multimeters where low power consumption and small footprint are critical.
Temperature Measurement Systems
When paired with an external reference, the MAX11209EEE+T can accurately digitize thermocouple or RTD signals, enabling precise temperature monitoring in process control.
Data Acquisition Systems
The SPI interface allows easy integration with microcontrollers in multi-sensor data acquisition systems, providing reliable conversion of analog signals in industrial automation.
Medical Instrumentation
The high resolution and stable performance over -40°C to 85°C make it suitable for medical monitoring devices that require accurate biopotential signal measurement.
- Q: What is the resolution of the MAX11209EEE+T?
- A: The MAX11209EEE+T is an 18-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: The sampling rate is 480 SPS (samples per second).
- Q: How many input channels does the MAX11209EEE+T have?
- A: It features a single (1) input channel.
- Q: What digital interface does this ADC use?
- A: It uses the SPI (Serial Peripheral Interface) for communication.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 16-SSOP (0.154", 3.90mm Width) package.
