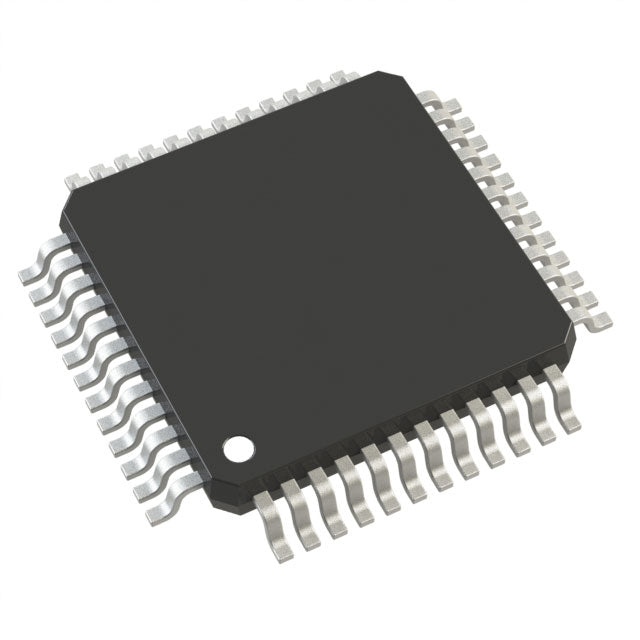

Analog Devices Inc./Maxim Integrated MAX11300GCM+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 34.16 | Dhs. 34.16 |
| 15+ | Dhs. 33.08 | Dhs. 496.20 |
| 25+ | Dhs. 32.36 | Dhs. 809.00 |
| 50+ | Dhs. 30.57 | Dhs. 1,528.50 |
| 100+ | Dhs. 26.97 | Dhs. 2,697.00 |
| N+ | Dhs. 5.39 | Price Inquiry |
Request Quote / Inquiry
MAX11300GCM+T - PIXI™ 20-Channel Programmable Mixed-Signal I/O
The MAX11300 is a highly integrated, mixed-signal IC that combines a 12-bit multichannel ADC and DAC with a PIXI™ (Programmable and Integrated eXecute Interface) architecture. This versatile device offers 20 independently configurable analog/digital ports, making it ideal for industrial automation, test equipment, and multi-function data acquisition systems.
Key Features & Benefits
- 20 Configurable Channels: Each port can be independently programmed as ADC input, DAC output, digital I/O, or analog switch
- 12-Bit Resolution: High-precision conversion for accurate signal processing
- 400kSPS Sampling Rate: Fast data acquisition for real-time applications
- SPI Interface: Industry-standard serial communication for easy integration
- Wide Operating Range: -40°C to 105°C for harsh industrial environments
- Flexible Power Supply: 1.62V to 5.5V operation supports various system architectures
- Space-Saving Package: 48-TQFP with exposed pad for enhanced thermal performance
Applications
- Industrial process control and automation
- Programmable logic controllers (PLCs)
- Automated test equipment (ATE)
- Multi-channel data acquisition systems
- Sensor interface modules
- Medical instrumentation
Why Choose This Component?
As an authorized distributor of Analog Devices/Maxim Integrated products, we provide genuine MAX11300GCM+T components with full traceability and manufacturer warranty. Our tape and reel packaging ensures compatibility with automated assembly processes, reducing production costs and improving reliability.
RoHS Compliant - Meets environmental standards for lead-free manufacturing.
For technical documentation, design resources, and application notes, please refer to the official MAX11300 datasheet.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | PIXI™ |
| Packaging | Tape & Reel (TR) | |
| Type | ADC, DAC |
| Number of Channels | 20 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 400k |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.62V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| ROHS |  |
MAX11300GCM+T.pdf
