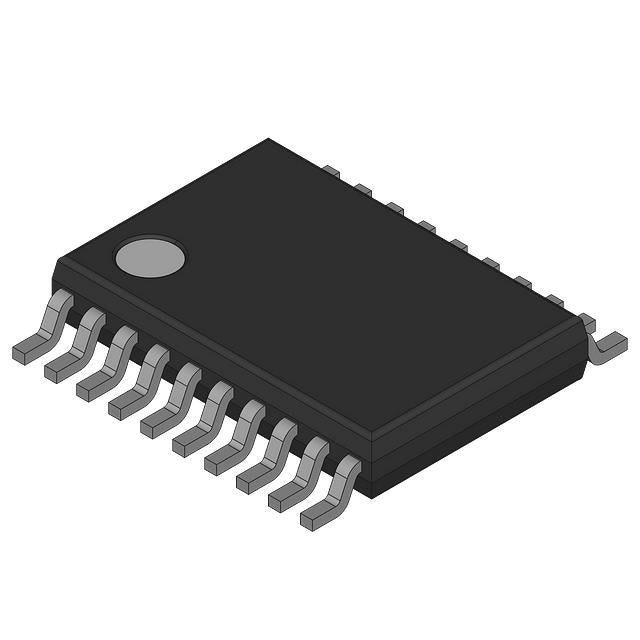

Analog Devices Inc./Maxim Integrated MAX1158BCUP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $73.12 | $73.12 |
| 15+ | $16.82 | $252.30 |
| 25+ | $16.45 | $411.25 |
| 50+ | $15.54 | $777.00 |
| 100+ | $13.71 | $1,371.00 |
| N+ | $2.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 135k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
The Maxim Integrated MAX1158BCUP is a 14-bit analog-to-digital converter (ADC) with a sampling rate of 135k SPS. It features a single input channel and a parallel interface for efficient data transfer. The device supports both external and internal voltage references, offering design flexibility. Packaged in a 20-TSSOP, it operates over a 0°C to 70°C temperature range, making it suitable for industrial instrumentation, medical monitoring, and portable test equipment where precision and reliability are essential.
- High Resolution: 14-bit output provides fine detail for accurate measurement in precision applications.
- Flexible Reference: Internal or external reference options allow for optimization of input range and cost.
- Parallel Interface: Enables fast and simple data reading by microcontrollers or DSPs.
- Compact Size: 20-TSSOP package is ideal for space-limited designs.
- Reliable Performance: From Maxim Integrated, known for high-quality analog ICs, ensuring dependable operation.
Precision Industrial Sensors
The 14-bit resolution of the MAX1158BCUP provides high accuracy for industrial sensors like temperature transmitters and flow meters, ensuring precise process monitoring.
Medical Patient Monitoring
In devices like ECG or blood pressure monitors, this ADC offers the resolution needed to capture subtle physiological signals with clarity, aiding in accurate diagnosis.
Data Logging Systems
With a 135k SPS sampling rate, it is well-suited for data loggers that record environmental or structural data over time, balancing speed and resolution.
Portable Test Equipment
The internal reference option simplifies design in handheld multimeters or calibrators, reducing component count and saving space.
Audio Processing
For professional audio equipment, the 14-bit resolution and parallel output can be used in digital mixers or effects processors, providing good dynamic range.
Automotive Test Systems
Operating from 0°C to 70°C, it can be used in benchtop or in-vehicle test systems for validating electronic control units (ECUs).
- Q: What is the resolution of the MAX1158BCUP?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 135k SPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: Does it have an internal reference?
- A: Yes, it supports both external and internal reference options.
- Q: What is the package type?
- A: It is available in a 20-TSSOP package.
