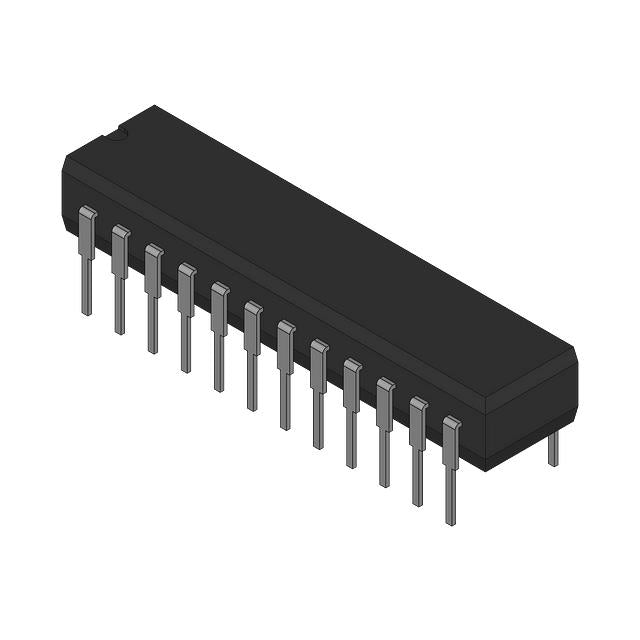

Analog Devices Inc./Maxim Integrated MAX120MRG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $173.36 | $173.36 |
| 15+ | $39.87 | $598.05 |
| 25+ | $39.01 | $975.25 |
| 50+ | $36.84 | $1,842.00 |
| 100+ | $32.51 | $3,251.00 |
| N+ | $6.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | -10.8V ~ -15.75V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -10.8V ~ -15.75V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CERDIP |
The MAX120MRG is a high-speed 12-bit analog-to-digital converter from Analog Devices/Maxim Integrated, designed for applications requiring both speed and accuracy. It offers a sampling rate of 500k SPS with a single input channel, making it suitable for fast signal digitization. The parallel interface ensures rapid data transfer to microcontrollers or DSPs. It supports both external and internal references, providing design flexibility. Packaged in a 24-CDIP ceramic package, it operates over the full military temperature range of -55°C to 125°C, making it ideal for defense, aerospace, and high-reliability industrial applications.
- High Sampling Rate: 500k SPS enables capture of fast-changing signals, critical for real-time control and measurement.
- 12-Bit Resolution: Provides 4096 levels of precision, suitable for demanding instrumentation.
- Dual Reference Options: Internal reference simplifies design; external reference allows for custom voltage ranges.
- Military Temperature Range: -55°C to 125°C ensures reliable operation in extreme conditions.
- Hermetic Ceramic Package: 24-CDIP offers superior protection against environmental stress.
High-Speed Industrial Data Acquisition
The 500k SPS sampling rate and 12-bit resolution make the MAX120MRG ideal for high-speed industrial DAQ systems, capturing fast transients in power monitoring and motor control.
Military Communications
With a -55°C to 125°C temperature range, this ADC is suitable for military communication systems, digitizing IF signals with high accuracy in harsh environments.
Medical Ultrasound
The high sampling rate supports ultrasound beamforming applications, where multiple channels of analog signals need fast and accurate conversion.
Aerospace Telemetry
In flight test instrumentation, the MAX120MRG converts sensor data from vibration and strain gauges, providing reliable performance under extreme temperature variations.
Scientific Instrumentation
For particle physics experiments and spectroscopy, the 12-bit resolution and 500k SPS rate offer a good balance between speed and precision.
Automotive Engine Control
In high-performance engine control units (ECUs), this ADC digitizes knock sensor and manifold pressure signals quickly, enabling real-time adjustments.
- Q: What is the resolution of the MAX120MRG?
- A: The MAX120MRG is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 500k SPS (samples per second).
- Q: How many channels does it have?
- A: It is a single-channel (1 channel) ADC.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 24-CDIP (0.300", 7.62mm) ceramic package.
