Analog Devices Inc./Maxim Integrated MAX1271BEAI
Normaler Preis
$25.56
Normaler Preis
$26.90
Verkaufspreis
$25.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.56 | $25.56 |
| 15+ | $24.75 | $371.25 |
| 25+ | $24.21 | $605.25 |
| 50+ | $22.87 | $1,143.50 |
| 100+ | $20.18 | $2,018.00 |
| N+ | $4.04 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 110k |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |

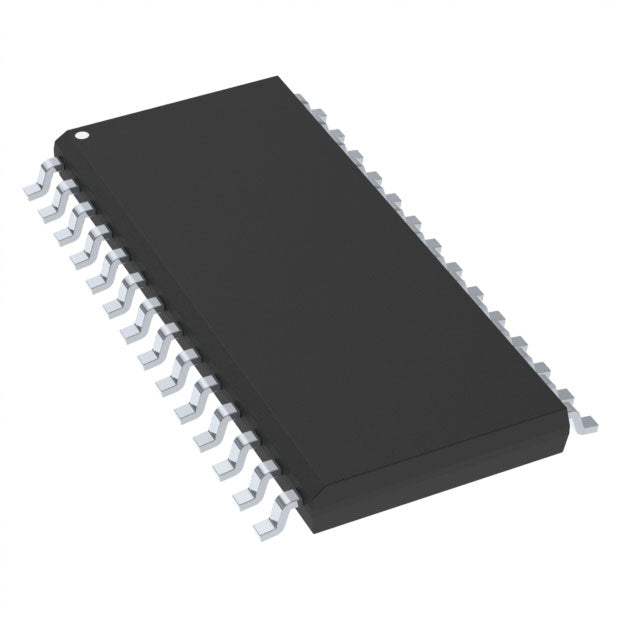

MAX1271BEAI+ 12-Bit 8-Channel Data Acquisition System IC
The MAX1271BEAI+ from Analog Devices Inc./Maxim Integrated is a high-performance 12-bit, 8-channel data acquisition system (DAS) featuring an integrated analog-to-digital converter (ADC) with 110kSPS sampling rate. Designed for precision measurement and control applications in industrial, automotive, medical, and aerospace systems.
Key Features & Benefits
- 12-bit resolution ensures accurate signal conversion for demanding applications
- 8 input channels enable multi-point sensing and monitoring
- 110kSPS sampling rate captures fast-changing signals with precision
- Serial data interface simplifies integration and reduces pin count
- Single 4.75V-5.25V supply operation for design flexibility
- -40°C to 85°C operating range for harsh environment reliability
- Surface mount 28-SSOP package for automated assembly
- RoHS compliant for environmental compliance
Typical Applications
- Industrial process control and monitoring systems
- Automotive sensor interfaces and diagnostics
- Medical instrumentation and patient monitoring
- Test and measurement equipment
- Multi-channel data logging systems
- Battery management and power monitoring
Design Support & Resources
Full technical documentation, reference designs, and application notes available. Our engineering team provides design-in support to accelerate your time-to-market. All units ship with full traceability and compliance documentation (RoHS/REACH).
Authorized Distributor | Full Traceability | Global Shipping Available
MAX1271BEAI+.pdf
×
