Analog Devices Inc./Maxim Integrated MAX1284BCSA+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.16 | $20.16 |
| 15+ | $19.52 | $292.80 |
| 25+ | $19.10 | $477.50 |
| 50+ | $18.04 | $902.00 |
| 100+ | $15.92 | $1,592.00 |
| N+ | $3.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |

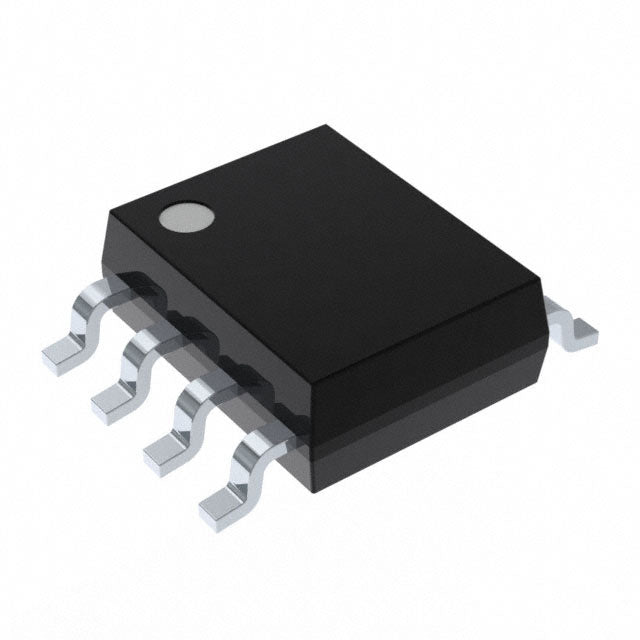

The MAX1284BCSA+ is a 12-bit analog-to-digital converter (ADC) from Analog Devices Inc./Maxim Integrated. It offers a sampling rate of 400 kSPS, making it suitable for a wide range of data acquisition and industrial applications. This single-channel device features a sample-and-hold architecture and communicates via an SPI interface, ensuring easy integration with digital systems. Housed in a compact 8-SOIC package, it is an excellent choice for space-constrained designs requiring reliable and accurate analog-to-digital conversion.
- Efficient Performance: The 400 kSPS sampling rate and 12-bit resolution offer a good balance for many embedded applications.
- Compact SOIC Package: The 8-SOIC package is small and widely used, simplifying PCB layout and manufacturing.
- Easy Integration: The SPI interface allows for straightforward connection to a wide variety of microcontrollers and digital signal processors.
- Single-Channel Simplicity: The single input channel simplifies the signal chain for applications that only require one analog input.
Battery-Powered Devices
The MAX1284BCSA+'s 400 kSPS sampling rate and 12-bit resolution provide a good balance of speed and accuracy for battery-powered devices like portable meters and data loggers, where power efficiency is also a key consideration.
Data Acquisition Systems
This ADC is well-suited for general-purpose data acquisition systems that require digitizing sensor signals with moderate speed and good resolution, such as in environmental monitoring equipment.
Industrial Sensors
In industrial automation, the MAX1284BCSA+ can be used to interface with various sensors, converting analog signals like temperature and pressure into digital data for a PLC or microcontroller.
Medical Instrumentation
The 12-bit resolution and SPI interface make this ADC suitable for portable medical devices, such as glucose monitors or pulse oximeters, where size and low pin count are important.
Motor Control
In motor control applications, this ADC can digitize current or voltage feedback signals at a rate sufficient for control loops, helping to ensure smooth and efficient motor operation.
Handheld Test Tools
The compact 8-SOIC package and simple SPI interface make the MAX1284BCSA+ a practical choice for handheld multimeters and other portable test equipment.
- Q: What is the resolution of the MAX1284BCSA+?
- A: The MAX1284BCSA+ is a 12-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 400 kSPS (400,000 samples per second).
- Q: How many input channels does the MAX1284BCSA+ have?
- A: This device features a single input channel (1 channel).
- Q: What digital interface does this ADC use?
- A: It uses a serial peripheral interface (SPI) for communication.
- Q: What is the architecture of the MAX1284BCSA+?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the package type for this part?
- A: It is available in an 8-SOIC (0.154", 3.90mm Width) package.
