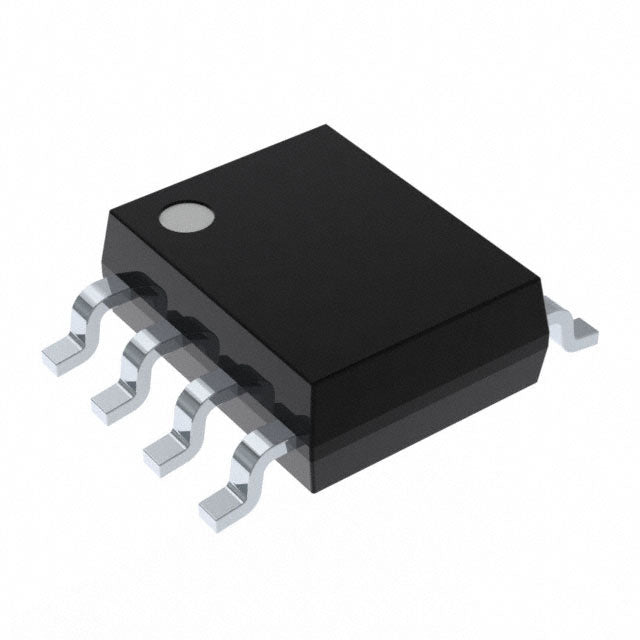

Analog Devices Inc./Maxim Integrated MAX1284BESA+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.55 | $23.55 |
| 15+ | $22.81 | $342.15 |
| 25+ | $22.31 | $557.75 |
| 50+ | $21.07 | $1,053.50 |
| 100+ | $18.59 | $1,859.00 |
| N+ | $3.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The MAX1284BESA+ is a high-speed 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 400k SPS. It features a single input channel with a sample-and-hold architecture and communicates via an SPI interface. Housed in a compact 8-SOIC package, this ADC is designed for applications requiring fast and accurate conversion, such as data acquisition, medical instrumentation, and industrial control.
- High-Speed Conversion: The 400k SPS sampling rate enables fast and accurate digitization of dynamic signals, ideal for real-time systems.
- Precise 12-Bit Resolution: Provides high-resolution output for accurate measurement in medical and industrial applications.
- Simple SPI Interface: The SPI communication protocol simplifies connection to microcontrollers and digital systems.
- Robust Operating Range: With a -40°C to 85°C temperature range, it is reliable for industrial environments.
High-Speed Data Acquisition
The MAX1284BESA+ with its 400k SPS sampling rate and 12-bit resolution is perfect for high-speed data acquisition systems where accurate and fast conversion of a single analog signal is required.
Medical Instrumentation
In medical devices like patient monitors, the 12-bit resolution and SPI interface of this ADC allow for precise digitization of biosignals, ensuring reliable data for diagnostic purposes.
Industrial Automation
The wide -40°C to 85°C temperature range makes the MAX1284BESA+ suitable for industrial sensors and control loops, providing accurate digital readings in harsh environments.
Test and Measurement Equipment
With its high sampling rate, this ADC is well-suited for benchtop multimeters and data loggers that require fast and accurate single-channel measurements.
Embedded Control Systems
The small 8-SOIC package and SPI interface make it easy to integrate into embedded systems for monitoring critical parameters like voltage and current.
- Q: What is the MAX1284BESA+?
- A: It is a 12-bit analog-to-digital converter (ADC) with a sample-and-hold architecture.
- Q: What is the resolution of the MAX1284BESA+?
- A: The resolution is 12 bits.
- Q: What is the sampling rate of the MAX1284BESA+?
- A: The sampling rate is 400k SPS.
- Q: How many channels does the MAX1284BESA+ have?
- A: It has 1 input channel.
- Q: What interface does the MAX1284BESA+ use?
- A: It uses an SPI interface.
- Q: What is the package type for the MAX1284BESA+?
- A: It is available in an 8-SOIC package.
