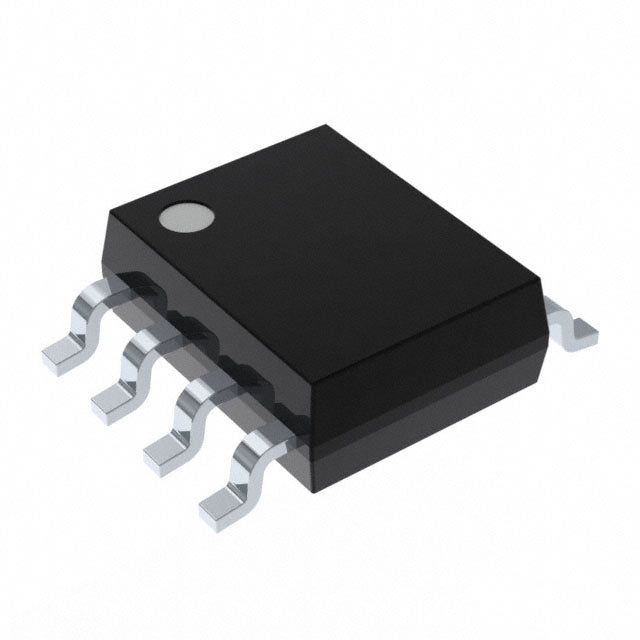

Analog Devices Inc./Maxim Integrated MAX1285BCSA+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.73 | $18.73 |
| 15+ | $18.14 | $272.10 |
| 25+ | $17.75 | $443.75 |
| 50+ | $16.76 | $838.00 |
| 100+ | $14.79 | $1,479.00 |
| N+ | $2.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 300k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The MAX1285BCSA+ is a 12-bit, 300k SPS analog-to-digital converter featuring a sample-and-hold architecture. It includes an internal voltage reference and communicates via a standard SPI interface. Housed in a compact 8-SOIC package, this ADC is designed for portable and space-constrained applications requiring high accuracy.
- Integrated Reference: Internal reference eliminates the need for external components, saving board space.
- High Resolution: 12-bit output provides detailed and accurate digital representation.
- Fast Sampling: 300k SPS supports real-time processing of dynamic signals.
- Compact Package: 8-SOIC package is ideal for miniaturized designs.
- Simple SPI Interface: Easy to connect to any microcontroller with SPI support.
Portable Instrumentation
The small 8-SOIC package and internal reference make the MAX1285BCSA+ ideal for space-constrained portable instruments requiring 12-bit accuracy.
Sensor Signal Conditioning
Single-channel design is perfect for digitizing a single sensor output, such as a temperature sensor or pressure transducer, with high precision.
Battery-Powered Devices
Low power consumption and internal reference reduce external component count, making it suitable for battery-operated devices.
Industrial Control Loops
300k SPS sampling rate allows for fast, accurate digitization of control signals in industrial automation systems.
Data Logging Systems
SPI interface and high resolution make it easy to integrate into data loggers for capturing and storing analog measurements.
Test and Measurement Equipment
Provides the accuracy and speed needed for benchtop multimeters and other test equipment.
- Q: What is the MAX1285BCSA+?
- A: It is a 12-bit, 300k SPS analog-to-digital converter with a sample-and-hold architecture (S/H-ADC).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What is the resolution and sampling rate?
- A: It provides 12-bit resolution and a maximum sampling rate of 300k SPS.
- Q: What interface does it use?
- A: It uses a standard SPI (Serial Peripheral Interface).
- Q: What is the reference type?
- A: It has an internal voltage reference.
- Q: What is the package and temperature range?
- A: It comes in an 8-SOIC package and operates from 0°C to 70°C.
