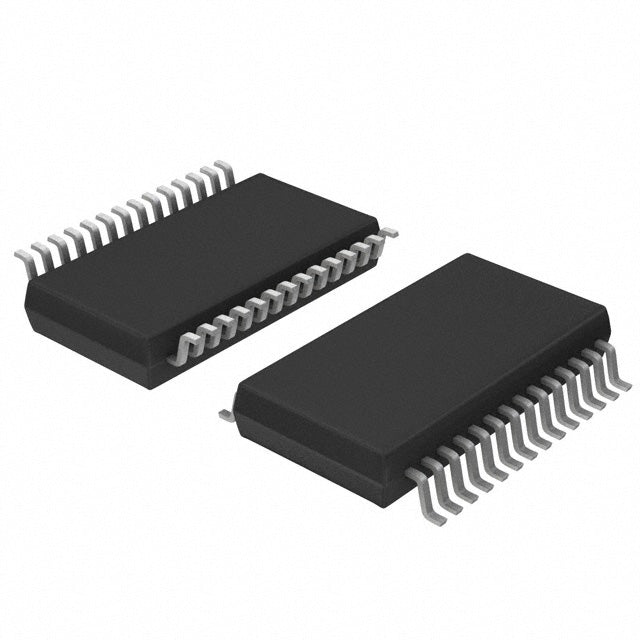

Analog Devices Inc./Maxim Integrated MAX1291BCEI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $62.10 | $62.10 |
| 15+ | $14.29 | $214.35 |
| 25+ | $13.98 | $349.50 |
| 50+ | $13.20 | $660.00 |
| 100+ | $11.65 | $1,165.00 |
| N+ | $2.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 4, 8 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-QSOP |
| ROHS |  |
The MAX1291BCEI+ is a versatile 12-bit analog-to-digital converter with a multiplexed input that supports up to 8 channels. It delivers a sampling rate of 250 kSPS, making it suitable for a wide range of industrial and medical applications. The parallel interface ensures fast data transfer to microcontrollers. This ADC is an excellent choice for multi-channel data acquisition, battery monitoring, and robotics control systems.
- Multi-Channel Flexibility: Supports 4 or 8 input channels for versatile system design.
- Fast Sampling: 250 kSPS rate handles dynamic signals effectively.
- Parallel Interface: Enables high-speed data transfer.
- Compact Package: 28-SSOP saves board space.
Industrial Data Acquisition
The MAX1291's 8-channel capability and 250 kSPS sampling rate make it ideal for monitoring multiple sensors in industrial data acquisition systems.
Battery Monitoring
Its ability to measure multiple battery cells with high accuracy is perfect for battery management systems in electric vehicles and backup power supplies.
Medical Devices
The high resolution and multi-channel input are suitable for patient monitoring equipment that tracks several vital signs simultaneously.
Automotive Test Systems
With its parallel interface and fast sampling, it can be used in automotive test equipment for engine control unit (ECU) signal analysis.
Robotics Control
The ADC's multiple channels allow for precise reading of joint position and torque sensors in robotic systems, enabling smooth and accurate motion control.
- Q: What is the MAX1291BCEI+?
- A: It is a 12-bit analog-to-digital converter (ADC) with a MUX-S/H-ADC architecture.
- Q: What is the resolution and sampling rate?
- A: It offers 12-bit resolution and a sampling rate of 250 kSPS.
- Q: How many input channels does it have?
- A: It has 4 or 8 input channels, selectable via configuration.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is available?
- A: It is available in a 28-SSOP package.
