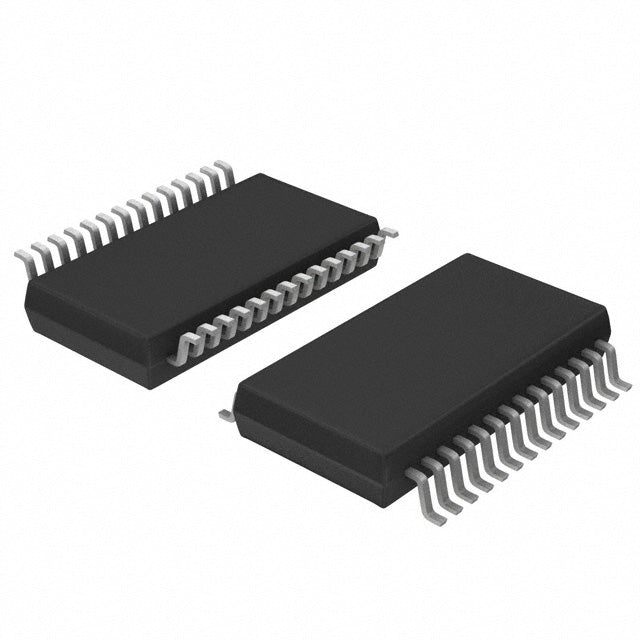

Analog Devices Inc./Maxim Integrated MAX1295BEEI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $30.31 | $30.31 |
| 15+ | $29.35 | $440.25 |
| 25+ | $28.71 | $717.75 |
| 50+ | $27.12 | $1,356.00 |
| 100+ | $23.93 | $2,393.00 |
| N+ | $4.79 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 265k |
| Number of Inputs | 3, 6 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-QSOP |
The MAX1295BEEI+ from Analog Devices is a 12-bit, 265 kSPS analog-to-digital converter with a flexible 3 or 6 channel input. Its parallel interface ensures fast data transfer, while the MUX-S/H-ADC architecture allows for efficient multi-channel scanning. Housed in a compact 28-SSOP package, this ADC operates over a wide temperature range, making it suitable for industrial, medical, and automotive applications.
- Multi-Channel Input: 3 or 6 channels for versatile signal monitoring.
- Fast Sampling: 265 kSPS for real-time data acquisition.
- Parallel Interface: High-speed data transfer for demanding applications.
- Wide Temperature Range: -40°C to 85°C for industrial use.
- Compact SSOP Package: Saves board space in dense designs.
Multi-Channel Data Logging
The MAX1295's 3 or 6 input channels and 265 kSPS sampling rate make it ideal for multi-channel data logging systems in industrial and environmental monitoring.
Battery-Powered Devices
With low power consumption and a wide temperature range, this ADC is suitable for battery-powered portable devices requiring multiple analog inputs.
Industrial Sensor Interfaces
The MUX-S/H-ADC architecture allows for efficient scanning of multiple sensors, making it perfect for industrial automation and control systems.
Medical Monitoring
In medical devices, the 12-bit resolution and multiple channels enable simultaneous monitoring of vital signs like ECG and temperature.
Automotive Electronics
The parallel interface and robust design make it suitable for automotive sensor applications, including battery management and motor control.
Test and Measurement Equipment
The high sampling rate and parallel output are beneficial for test equipment requiring fast, accurate data acquisition.
- Q: What is the resolution of the MAX1295BEEI+?
- A: The MAX1295BEEI+ is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It features a sampling rate of 265 kSPS.
- Q: How many input channels does the MAX1295 have?
- A: It offers 3 or 6 input channels, depending on configuration.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the architecture of this converter?
- A: It utilizes a MUX-S/H-ADC architecture with an integrated multiplexer.
- Q: What is the package type for this part?
- A: It is available in a 28-SSOP package.
