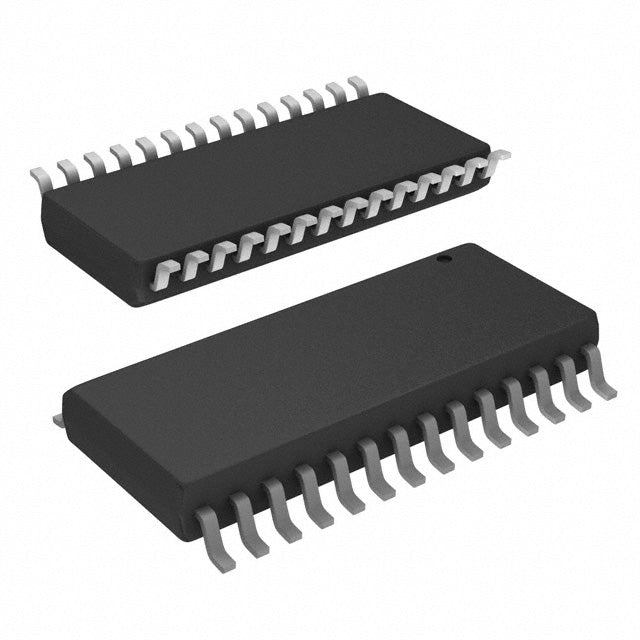

Analog Devices Inc./Maxim Integrated MAX135CWI+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.19 | $24.19 |
| 15+ | $23.42 | $351.30 |
| 25+ | $22.91 | $572.75 |
| 50+ | $21.64 | $1,082.00 |
| 100+ | $19.10 | $1,910.00 |
| N+ | $3.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 15 |
| Sampling Rate (Per Second) | 16 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Multi-Slope |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The MAX135CWI+ is a high-resolution, 15-bit analog-to-digital converter (ADC) from Analog Devices Inc./Maxim Integrated. It features a single input channel and a sampling rate of 16 SPS, optimized for precision measurement of slow-changing signals. The device uses an external reference for accurate conversion. The parallel interface provides easy connectivity to microcontrollers. Housed in a 28-SOIC package, it operates over a 0°C to 70°C temperature range, making it suitable for precision industrial, scientific, and data logging applications where accuracy is paramount.
- High Resolution: 15-bit resolution provides excellent accuracy for precision measurement applications.
- Low Power Consumption: Ideal for battery-powered and portable instruments requiring long battery life.
- Simple Parallel Interface: Easy to interface with standard microprocessors and digital systems.
- External Reference: Allows for precise calibration and customization of the input range.
- Cost-Effective Precision: Provides high accuracy at a lower cost compared to higher-speed ADCs, making it ideal for precision, low-speed applications.
Precision Weigh Scales
The 15-bit resolution and low sampling rate make the MAX135CWI+ ideal for precision weigh scales and force measurement, where high accuracy is more important than speed.
Industrial Process Monitoring
For slow-changing industrial signals like temperature and pressure, the MAX135CWI+ provides accurate digitization for process monitoring and control systems.
Data Logging Systems
The low power consumption and high resolution make it suitable for long-term data logging applications, such as environmental monitoring and energy metering.
Scientific Instruments
The high resolution is beneficial for scientific instruments like pH meters, spectrophotometers, and other laboratory equipment requiring precise measurements.
Battery Management Systems
The low sampling rate and high accuracy are well-suited for monitoring battery voltage and current in battery management systems.
Calibration Equipment
The high resolution makes it useful in calibration and reference equipment where precise voltage measurement is required.
- Q: What type of ADC is the MAX135CWI+?
- A: The MAX135CWI+ is a single-channel, 15-bit analog-to-digital converter.
- Q: What is the resolution of the MAX135CWI+?
- A: It provides 15-bit resolution.
- Q: What is the sampling rate of the MAX135CWI+?
- A: The MAX135CWI+ supports a sampling rate of 16 SPS.
- Q: How many channels does the MAX135CWI+ have?
- A: It features 1 input channel.
- Q: What digital interface does the MAX135CWI+ use?
- A: It uses a parallel digital interface.
- Q: What is the package type for the MAX135CWI+?
- A: It is available in a 28-SOIC (0.295", 7.50mm Width) package.
