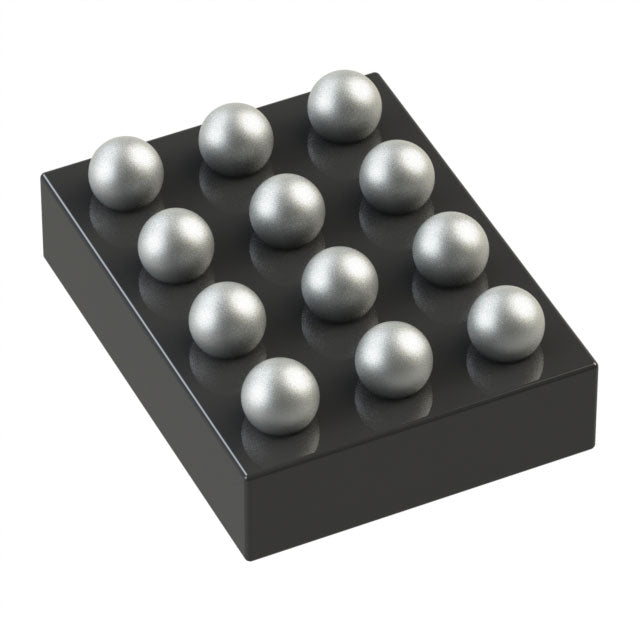

Analog Devices Inc./Maxim Integrated MAX14655EWC+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.00 | $12.00 |
| 15+ | $2.76 | $41.40 |
| 25+ | $2.70 | $67.50 |
| 50+ | $2.55 | $127.50 |
| 100+ | $2.25 | $225.00 |
| N+ | $0.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tape & Reel (TR) |
| Function | Battery Protection |
| Battery Chemistry | Lithium Ion |
| Number of Cells | - |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, WLBGA |
| Supplier Device Package | 12-WLP |
| ROHS |  |
The MAX14655EWC+T is a battery protection IC from Analog Devices, designed for Lithium Ion batteries. It offers essential safety features including Over Current, Over Temperature, and Over Voltage protection. With a wide -40°C to 85°C operating range and a compact 12-WFBGA, WLBGA package, it is well-suited for portable and industrial applications requiring reliable battery safeguarding.
- Essential Safety Features: Provides Over Current, Over Temperature, and Over Voltage protection to prevent battery damage.
- Wide Temperature Tolerance: Operates from -40°C to 85°C, suitable for demanding environments.
- Space-Saving Package: The 12-WFBGA, WLBGA package is perfect for miniaturized designs.
- High-Reliability Design: Manufactured by Analog Devices, ensuring consistent performance.
Power Tool Battery Packs
In cordless power tools, the MAX14655EWC+T provides robust Over Current and Over Temperature protection, ensuring safe operation under heavy load conditions.
Portable Electronics
Integrate into portable speakers, cameras, and drones to protect Lithium Ion batteries from overvoltage and overcurrent faults, improving device safety and longevity.
Electric Bicycle Batteries
Use in e-bike battery management systems to offer reliable protection against electrical faults, supporting safe operation in outdoor and varying temperature environments.
Backup Power Supplies
In UPS systems, this IC helps protect the Lithium Ion battery bank from overvoltage and overtemperature conditions, ensuring reliable backup power.
Wearable Devices
Deploy in smartwatches and fitness trackers where the compact WLBGA package and wide temperature range enable safe battery operation in close contact with the user.
- Q: What is the function of the MAX14655EWC+T?
- A: It is a battery protection IC for Lithium Ion batteries.
- Q: What protections are included?
- A: It includes Over Current, Over Temperature, and Over Voltage protection.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 12-WFBGA, WLBGA package.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion battery chemistry.
