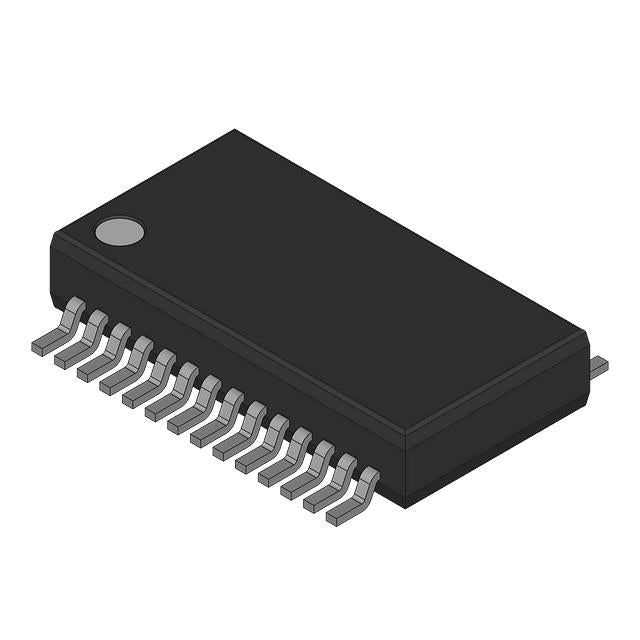

Analog Devices Inc./Maxim Integrated MAX146BEAP/GH9
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $97.00 | $97.00 |
| 15+ | $22.31 | $334.65 |
| 25+ | $21.83 | $545.75 |
| 50+ | $20.61 | $1,030.50 |
| 100+ | $18.19 | $1,819.00 |
| N+ | $3.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 133k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | 4-Wire Serial, DSP, Microwire, QSPI, SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
The MAX146BEAP/GH9 is a 12-bit, 8-channel analog-to-digital converter from Analog Devices, offering exceptional flexibility with its multiple serial interfaces. It achieves a sampling rate of 133 kSPS, making it suitable for a wide range of data acquisition applications. The device features a multiplexer and sample-and-hold circuit, enabling sequential conversion of multiple analog inputs. It supports SPI, QSPI, Microwire, and DSP-compatible serial interfaces, ensuring compatibility with various host controllers. This ADC is ideal for industrial monitoring, medical instrumentation, and automotive test equipment.
- Multiple Interface Options: Supports SPI, QSPI, Microwire, and DSP interfaces, providing design flexibility.
- High Throughput: 133 kSPS sampling rate enables real-time processing of dynamic signals.
- 8-Channel Input: Reduces the need for multiple ADCs in multi-sensor applications.
- Wide Temperature Range: -40°C to 85°C operation ensures reliability in harsh environments.
Versatile Data Acquisition Systems
The multiple serial interface options (SPI, QSPI, Microwire) make the MAX146BEAP/GH9 highly flexible for use in various DAQ systems, allowing easy integration with different microcontrollers.
Industrial Sensor Monitoring
With 8 channels and 133 kSPS throughput, it can efficiently monitor multiple industrial sensors, such as temperature and vibration sensors, for predictive maintenance.
Medical Device Data Capture
The high accuracy and multiple interface options make it suitable for medical devices like patient monitors that require reliable data from multiple physiological sensors.
Automotive Test Equipment
Its wide temperature range (-40°C to 85°C) and robust serial interfaces make it ideal for automotive testing and diagnostic tools.
Portable Multi-Sensor Instruments
The compact SSOP package and low power consumption enable the design of portable instruments that can measure various parameters without compromising on performance.
- Q: What is the resolution of the MAX146BEAP/GH9?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 133 kSPS.
- Q: How many channels does it have?
- A: It has 8 input channels.
- Q: What interfaces are supported?
- A: It supports 4-Wire Serial, DSP, Microwire, QSPI, and SPI interfaces.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the package type?
- A: It comes in a 20-SSOP package.
