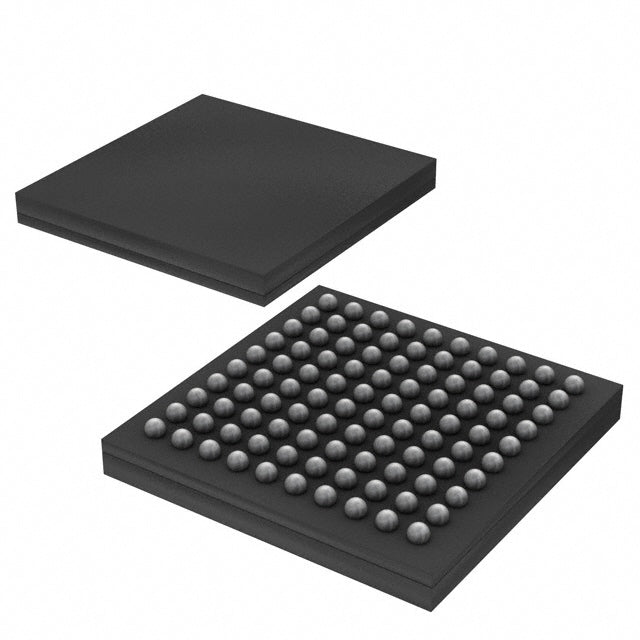

Analog Devices Inc./Maxim Integrated MAX32630IWG+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $427.50 | $427.50 |
| 15+ | $414.00 | $6,210.00 |
| 25+ | $405.00 | $10,125.00 |
| 50+ | $382.50 | $19,125.00 |
| 100+ | $337.50 | $33,750.00 |
| N+ | $67.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | DARWIN |
| Packaging | Factory | Strip |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 96MHz |
| Connectivity | 1-Wire, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 66 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-WLP (4.4x4.4) |
| Package / Case | 100-WFBGA, WLBGA |
| ROHS |  |
The MAX32630IWG+ from Analog Devices is a high-performance microcontroller built around an ARM Cortex-M4F core running at 96MHz. It offers 2MB of flash memory and 512KB of SRAM, providing ample resources for complex applications. Operating from 1.14V to 3.6V, it is optimized for low-power, battery-operated systems. The device includes essential supervisory features such as brown-out detection, power-on reset, PWM, and a watchdog timer, all housed in a compact 100-WFBGA package.
- High Processing Power: 96MHz Cortex-M4F with DSP instructions accelerates signal processing tasks.
- Large Memory Capacity: 2MB flash and 512KB SRAM support complex firmware and data buffering.
- Ultra-Low Voltage Operation: 1.14V minimum supply enables direct energy harvesting or single-cell battery use.
- Comprehensive Protection: Integrated brown-out reset and watchdog timer enhance system reliability.
Wearable Health Monitors
The 96MHz Cortex-M4F with 512KB SRAM enables real-time processing of biosignals (ECG, PPG) while maintaining low power consumption.
Portable Industrial Data Loggers
With 2MB flash and wide voltage range (1.14V-3.6V), it supports long-duration logging in harsh environments without frequent battery changes.
Smart Home Hubs
Multiple PWM channels and WDT ensure reliable control of lighting and motor actuators, while the low voltage operation allows direct Li-ion battery connection.
IoT Edge Nodes
The integrated POR and brown-out detection protect data integrity during unstable power conditions, critical for remote sensor nodes.
Medical Implantable Devices
The -20°C to 85°C range and low-voltage operation make it suitable for body-worn or implantable monitoring systems.
Robotics Controllers
High-speed 96MHz processing and 512KB RAM support complex motion control algorithms and sensor fusion in compact robots.
- Q: What is the maximum clock speed of the MAX32630IWG+?
- A: The ARM Cortex-M4F core runs at up to 96MHz.
- Q: What is the operating voltage range?
- A: It operates from 1.14V to 3.6V, suitable for battery-powered devices.
- Q: How much memory does it include?
- A: It has 2MB flash and 512KB SRAM.
- Q: What package is available?
- A: It comes in a 100-WFBGA (WLBGA) package.
