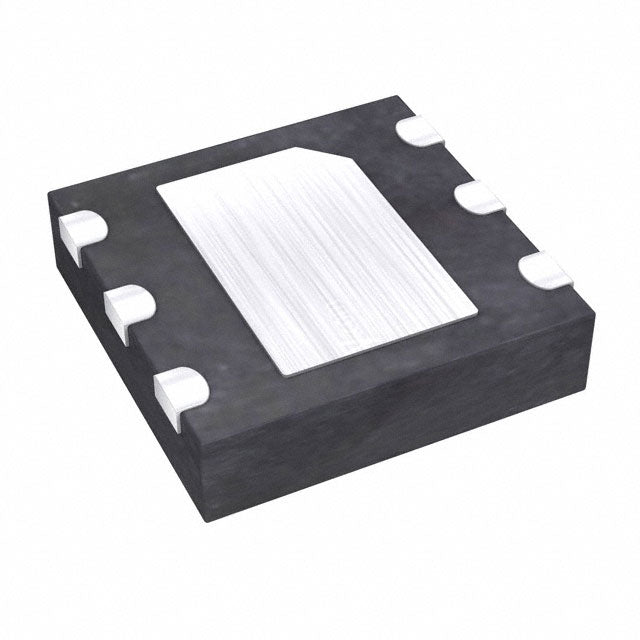

Analog Devices Inc./Maxim Integrated MAX4835ETT18BD2+T
Normaler Preis
$8.25
Normaler Preis
$2.06
Verkaufspreis
$8.25
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.25 | $8.25 |
| 15+ | $1.90 | $28.50 |
| 25+ | $1.85 | $46.25 |
| 50+ | $1.75 | $87.50 |
| 100+ | $1.55 | $155.00 |
| N+ | $0.31 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable, Reset, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
| ROHS |  |
The Analog Devices MAX4835ETT18BD2+T is a fixed 1.8V LDO regulator delivering up to 250mA. With a low dropout of 165mV at full load and a quiescent current of 150μA, it balances performance and efficiency. The 6-TDFN (3x3) package is suitable for a variety of applications.
- High 250mA output current supports demanding loads.
- Low dropout (165mV) improves efficiency at low input voltages.
- Stable 1.8V output for sensitive digital circuits.
- Compact 3x3mm TDFN package.
High-Current Portable Devices
250mA output supports power-hungry peripherals like cameras or displays.
FPGA Core Supplies
Low dropout (165mV) maintains 1.8V rail even with fluctuating input.
Networking Equipment
Stable output for Ethernet PHYs and switches.
Industrial Control Systems
Robust 250mA capacity powers sensors and actuators.
Consumer Electronics
1.8V rail for DDR memory or logic circuits in set-top boxes.
Automotive Infotainment
Reliable regulation for audio processors and displays.
- Q: What is the output voltage of the MAX4835ETT18BD2+T?
- A: The output voltage is fixed at 1.8V.
- Q: What is the maximum output current?
- A: The maximum output current is 250mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.8V to 5.5V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 165mV at 250mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150μA.
- Q: What package is available?
- A: The device comes in a 6-TDFN (3x3) package.
Base Product Number ：
MAX4835ETT18BD2
MAX4835ETT18BD2+T.pdf
