Analog Devices Inc./Maxim Integrated MAX5068AAUE+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 12.89 | Dhs. 12.89 |
| 15+ | Dhs. 12.48 | Dhs. 187.20 |
| 25+ | Dhs. 12.20 | Dhs. 305.00 |
| 50+ | Dhs. 11.53 | Dhs. 576.50 |
| 100+ | Dhs. 10.17 | Dhs. 1,017.00 |
| N+ | Dhs. 2.03 | Price Inquiry |
Request Quote / Inquiry
MAX5068AAUE+ PWM Controller IC
The MAX5068AAUE+ is a high-performance PWM controller from Analog Devices Inc./Maxim Integrated, designed for AC/DC offline switching applications. This versatile controller supports both flyback and forward converter topologies, making it ideal for a wide range of power supply designs in industrial, telecommunications, and automotive applications.
Key Features & Benefits
- Flexible Topology Support: Compatible with both flyback and forward converter designs for maximum design flexibility
- Wide Input Voltage Range: Operates from 10.8V to 24V supply voltage with 23.6V start-up voltage
- Adjustable Switching Frequency: 25kHz to 1.25MHz range enables optimization for efficiency and EMI performance
- Comprehensive Protection: Built-in current limiting and over-temperature protection safeguard your power supply
- Advanced Control Features: Enable pin, frequency control, and synchronization capability for system integration
- Extended Temperature Range: -40°C to 150°C junction temperature for harsh environment applications

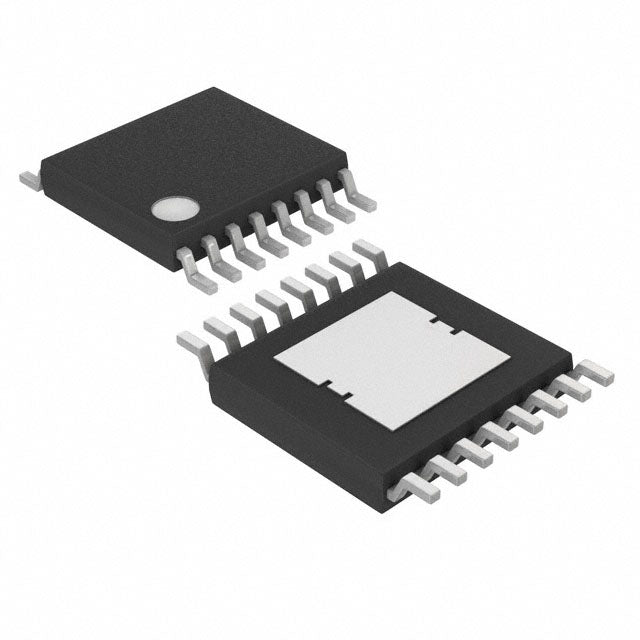

- Compact Surface Mount Package: 16-TSSOP with exposed pad for enhanced thermal performance
Applications
This PWM controller is perfectly suited for aerospace, automotive, industrial control systems, telecommunications equipment, and medical devices requiring reliable, efficient power conversion with long lifecycle support and full traceability.
Why Choose HQICKEY? As an authorized distributor, we provide genuine Analog Devices components with full traceability, technical support, and global shipping. All products come with lifecycle commitment and design-in resources to support your engineering needs.
Related Products & Resources
Explore our complete range of AC DC Converters and Offline Switchers for your power supply design needs. Visit HQICKEY for our full catalog of programmable logic components and semiconductors. Stay updated with the latest industry insights and technical articles on our technical blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Output Isolation | Either |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Start Up | 23.6 V |
| Voltage - Supply (Vcc/Vdd) | 10.8V ~ 24V |
| Duty Cycle | 50% |
| Frequency - Switching | 25kHz ~ 1.25MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
