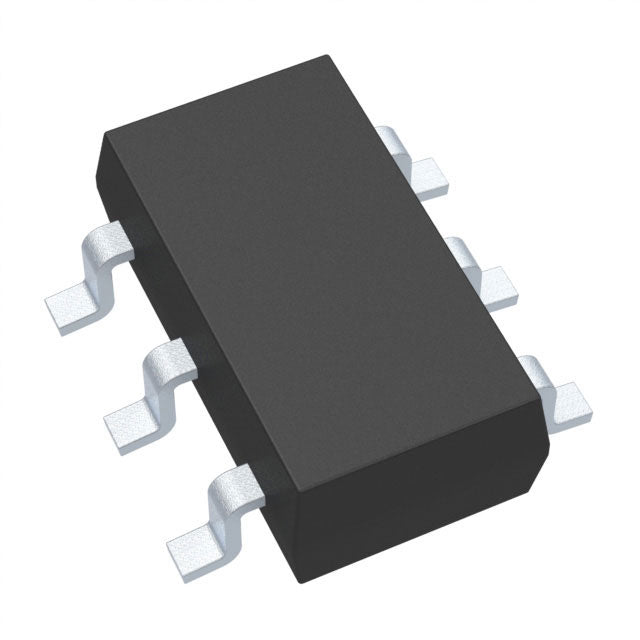

Analog Devices Inc./Maxim Integrated MAX6329ZLUT+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.84 | $9.84 |
| 15+ | $2.26 | $33.90 |
| 25+ | $2.21 | $55.25 |
| 50+ | $2.09 | $104.50 |
| 100+ | $1.85 | $185.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.23V (2.5V) |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.4V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The MAX6329ZLUT+T is a fixed 5V low dropout linear regulator from Analog Devices, delivering up to 150mA. It features a low quiescent current of 50µA and a dropout voltage of 0.4V at full load. Housed in a compact SOT-23-6 package, it is designed for battery-powered and low-power applications requiring a stable 5V supply.
- Ultra-Low Quiescent Current: 50µA significantly reduces standby power consumption.
- Fixed 5V Output: Simplifies design by eliminating external resistor dividers.
- Low Dropout: 0.4V at 150mA allows operation from a 5.4V input.
- Compact SOT-23-6 Package: Suitable for space-limited designs.
5V Logic Supply from 3.3V Rail
With a 0.4V dropout at 150mA, this LDO can generate a stable 5V supply from a 5.4V input, making it suitable for legacy 5V logic in mixed-voltage systems.
Battery-Powered Industrial Sensors
The 50µA quiescent current is ideal for remote sensors that operate on battery power, providing a regulated 5V rail for signal conditioning and communication interfaces.
Automotive Electronics
For automotive ECUs requiring a 5V reference for sensors or ADCs, this regulator offers low dropout and low quiescent current, reducing load on the vehicle battery.
Portable Test Equipment
The SOT-23-6 package and low power consumption make it suitable for handheld multimeters and calibrators that need a precise 5V reference.
IoT Gateway Modules
In IoT devices with multiple voltage domains, this LDO provides a clean 5V rail for peripheral interfaces while maintaining high efficiency due to its low quiescent current.
- Q: What is the output voltage of the MAX6329ZLUT+T?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can supply up to 150mA.
- Q: What is the input voltage range?
- A: The reference voltage is 1.23V, with a typical input of 2.5V; the full input range is not specified in the provided data.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 50 µA.
- Q: What package is available?
- A: It is available in a SOT-23-6 package.
