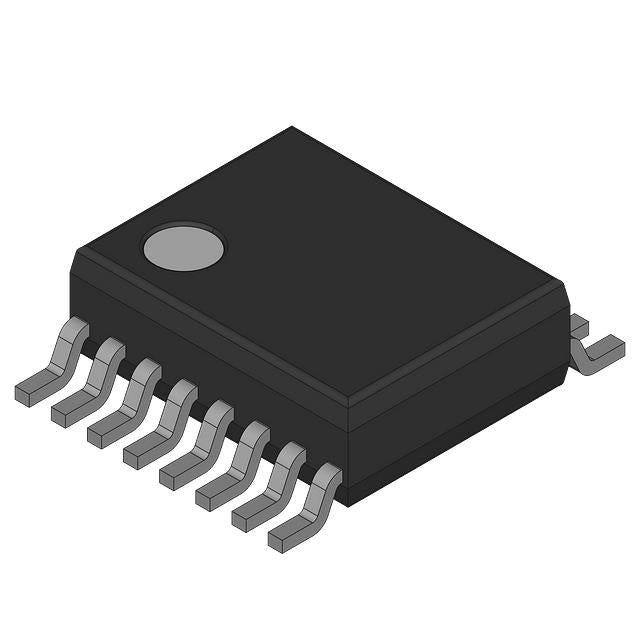

Analog Devices Inc./Maxim Integrated MAX846AEEE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.20 | $19.20 |
| 15+ | $4.42 | $66.30 |
| 25+ | $4.32 | $108.00 |
| 50+ | $4.08 | $204.00 |
| 100+ | $3.60 | $360.00 |
| N+ | $0.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Short Circuit, Undervoltage |
| Charge Current - Max | - |
| Battery Pack Voltage | 8.4V |
| Voltage - Supply (Max) | 20V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
The Analog Devices MAX846AEEE is a versatile multi-chemistry battery charger controller for 2-cell packs. It regulates an 8.4V battery voltage and includes short-circuit and undervoltage protection for reliable operation. With a wide -40°C to 85°C temperature range and a 16-SSOP package, it suits industrial and portable applications requiring flexible chemistry support.
- Multi-chemistry support provides design flexibility across different battery types.
- Short-circuit and undervoltage protection enhance system reliability and user safety.
- Wide operating temperature range enables use in harsh industrial settings.
- 16-SSOP package offers a through-hole friendly footprint for prototyping.
Multi-Chemistry Chargers
Design universal chargers for 2-cell packs using different chemistries, simplifying inventory for consumer electronics manufacturers.
Portable Power Tools
Charge 2-cell battery packs in compact drills and screwdrivers, with short-circuit protection for safe operation on job sites.
Backup Battery Systems
Maintain 8.4V backup batteries in alarm systems and emergency lighting, ensuring readiness with undervoltage safeguards.
Medical Instruments
Power portable diagnostic devices that require reliable 2-cell charging in clinical environments from -40°C to 85°C.
Communication Equipment
Support two-way radios and portable test equipment with robust protection against short circuits and deep discharge.
- Q: What battery chemistries does the MAX846AEEE support?
- A: It supports Multi-Chemistry batteries, including various rechargeable types.
- Q: How many cells can it charge?
- A: It is configured for 2 cells.
- Q: What is the battery pack voltage?
- A: The battery voltage is 8.4V.
- Q: What fault protection is included?
- A: It features Short Circuit and Undervoltage protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
- Q: What package is available?
- A: It comes in a 16-SSOP package.
