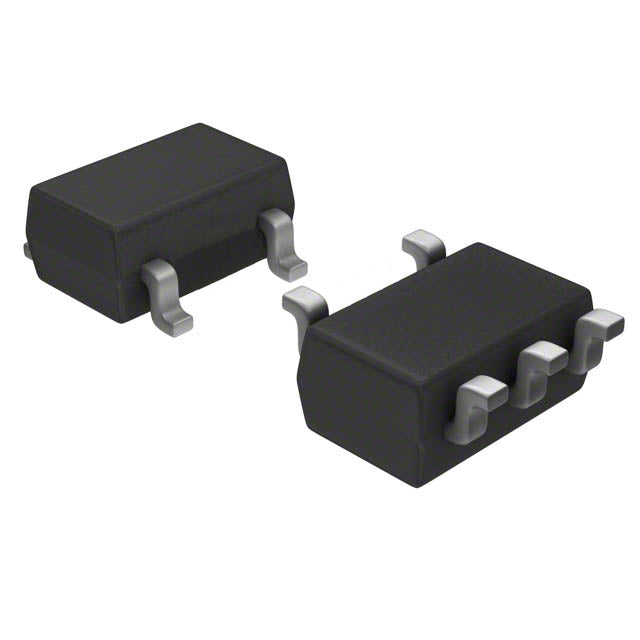

Analog Devices Inc./Maxim Integrated MAX8868EUK28+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.90 | $3.90 |
| 15+ | $3.78 | $56.70 |
| 25+ | $3.70 | $92.50 |
| 50+ | $3.49 | $174.50 |
| 100+ | $3.08 | $308.00 |
| N+ | $0.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 μA |
| Current - Supply (Max) | 100 μA |
| PSRR | 63dB (10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The Analog Devices MAX8868EUK28+T is a fixed 2.8V low dropout linear regulator capable of delivering 150mA. Its ultra-low dropout voltage of 0.165V at full load and 180 μA quiescent current make it highly efficient for battery-powered devices. Packaged in a compact SOT-23-5, this regulator offers excellent noise rejection (63dB at 10kHz) for sensitive portable electronics.
- Ultra-Low Dropout: 0.165V at 150mA maximizes battery utilization.
- Compact Footprint: SOT-23-5 package saves valuable PCB space.
- High Frequency PSRR: 63dB at 10kHz filters high-frequency noise.
- Low Quiescent Current: 180 μA extends battery life in standby mode.
Portable Consumer Electronics
Ideal for powering Bluetooth modules, wearables, and smart sensors where 150mA is sufficient and board space is limited.
Battery-Powered IoT Devices
The low 180 μA quiescent current and tiny SOT-23 package make it perfect for always-on IoT nodes.
Camera Modules
Provides a clean 2.8V supply for image sensors, reducing noise in captured images.
Handheld GPS Units
Stable output ensures reliable operation of GPS receivers even with fluctuating battery voltage.
Portable Audio Players
High PSRR (63dB at 10kHz) minimizes power supply noise, improving audio clarity.
Medical Wearables
Compact size and low dropout make it suitable for continuous glucose monitors and heart rate sensors.
- Q: What is the output voltage of the MAX8868EUK28+T?
- A: It provides a fixed 2.8V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage should be between 2.8V + dropout (0.165V) and 6.5V (absolute maximum).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.165V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 180 μA.
- Q: What package is available?
- A: This device is available in a SOT-23-5 package.
