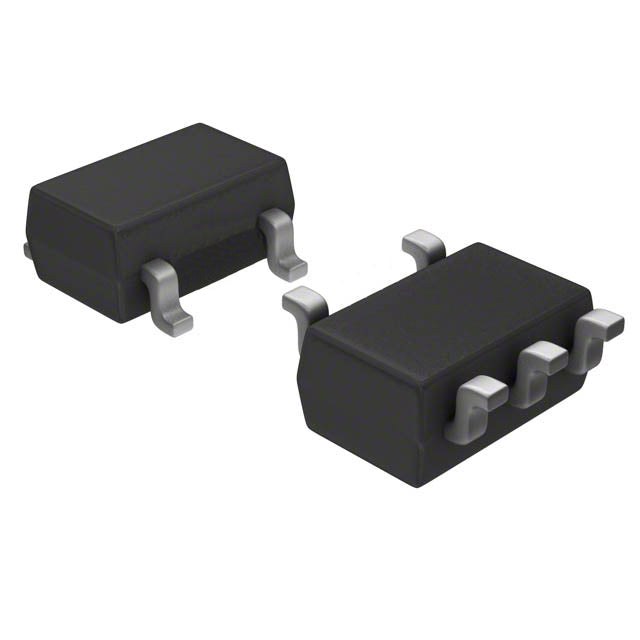

Analog Devices Inc./Maxim Integrated MAX8877EUK28+T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.85 | $3.85 |
| 15+ | $3.73 | $55.95 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.44 | $172.00 |
| 100+ | $3.04 | $304.00 |
| N+ | $0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 μA |
| Current - Supply (Max) | 100 μA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The MAX8877EUK28+T is a fixed 2.8V low dropout linear regulator from Analog Devices, delivering up to 150mA of output current. Its low 180 μA quiescent current and typical dropout voltage of just 0.165V at full load make it an efficient choice for battery-operated devices. Housed in a compact SOT-23-5 package, this LDO provides a stable and clean power supply for space-constrained applications.
- Extended Battery Life: The ultra-low 180 μA quiescent current minimizes power draw during standby, ideal for portable electronics.
- High Efficiency at Low Dropout: A typical dropout of only 0.165V at 150mA allows operation close to the battery voltage, reducing power dissipation.
- Space-Saving Design: The SOT-23-5 package is ideal for compact PCBs, enabling miniaturized product designs.
- Stable Fixed Output: The fixed 2.8V output ensures consistent performance without external resistor dividers, simplifying design.
Battery-Powered Portable Devices
With a low 180 μA quiescent current and a 2.8V fixed output, the MAX8877EUK28+T is ideal for extending battery life in handheld instruments, remote controls, and wearable electronics where standby power is critical.
Noise-Sensitive Analog Circuits
The low dropout performance (0.165V typ at 150mA) ensures stable operation even as the battery voltage approaches the output, minimizing noise coupling into sensitive analog front-ends in sensor interfaces.
Compact IoT Modules
The SOT-23-5 package allows for a minimal PCB footprint, making it suitable for space-constrained IoT nodes, smart sensors, and wireless transceivers that require a clean 2.8V rail.
Low-Power Microcontrollers
Many low-power MCUs operate at 2.8V. This LDO provides a stable supply with fast transient response, ensuring reliable operation during active processing and wireless transmission bursts.
Reference Voltage Source
The fixed 2.8V output with low dropout can serve as a local reference for comparators or ADCs in mixed-signal systems, providing a stable voltage independent of input fluctuations.
Portable Medical Monitors
For wearable health monitors, the combination of low quiescent current and small package enables compact, energy-efficient designs that maintain accuracy over long durations.
- Q: What is the output voltage of the MAX8877EUK28+T?
- A: The output voltage is fixed at 2.8V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 0.165V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 180 μA.
- Q: What package is available?
- A: The device comes in a SOT-23-5 package.
