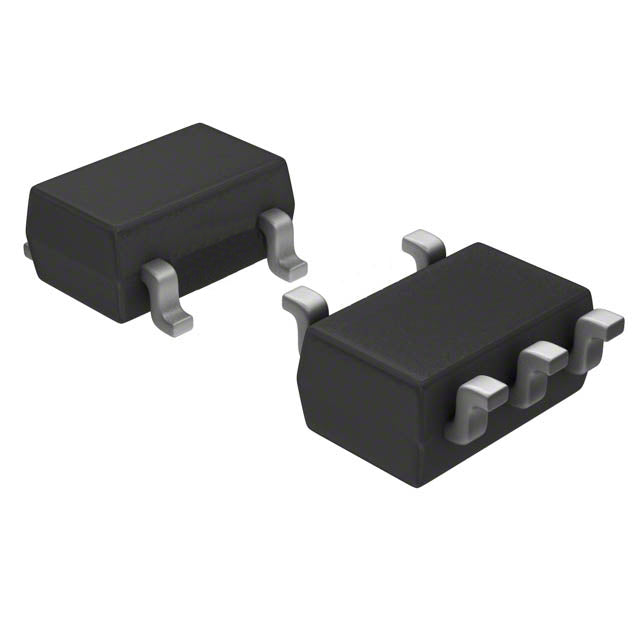

Analog Devices Inc./Maxim Integrated MAX8877EUK30+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.48 | $11.48 |
| 15+ | $2.64 | $39.60 |
| 25+ | $2.58 | $64.50 |
| 50+ | $2.44 | $122.00 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
The MAX8877EUK30 is a 3.0V fixed-output LDO regulator from Analog Devices, capable of sourcing 150mA. With a typical dropout of 165mV and quiescent current of 180µA, it offers excellent efficiency for battery-operated equipment. The SOT-23-5 package is ideal for space-limited applications requiring a stable, low-noise supply.
- Efficient Power Conversion: Low dropout voltage (165mV) maximizes usable battery range.
- Low Power Consumption: 180µA quiescent current reduces idle power drain.
- Small Size: SOT-23-5 package enables miniaturized designs.
- Reliable Performance: Fixed 3.0V output ensures consistent logic levels.
Portable Medical Devices
Stable 3.0V output with low dropout ensures reliable operation of glucose monitors and pulse oximeters from single-cell batteries.
GPS Receivers
Clean power delivery with 180µA quiescent current helps maintain GPS signal acquisition in handheld navigation devices.
Smart Home Sensors
Ideal for IoT sensors requiring constant 3.0V from 3.3V rails, with minimal power loss due to low dropout.
Remote Controls
Low quiescent current extends shelf life of remote controls using 2xAA batteries, providing stable 3.0V until batteries are nearly depleted.
Embedded Systems
Powers logic ICs and microcontrollers in compact embedded designs where SOT-23-5 footprint is advantageous.
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 150mA maximum output current.
- Q: What is the input voltage range?
- A: Operates from 3V to 5.5V input.
- Q: What is the dropout voltage?
- A: 165mV typical at 150mA load.
- Q: What is the quiescent current?
- A: 180µA quiescent current.
- Q: What package is used?
- A: SOT-23-5 package.
