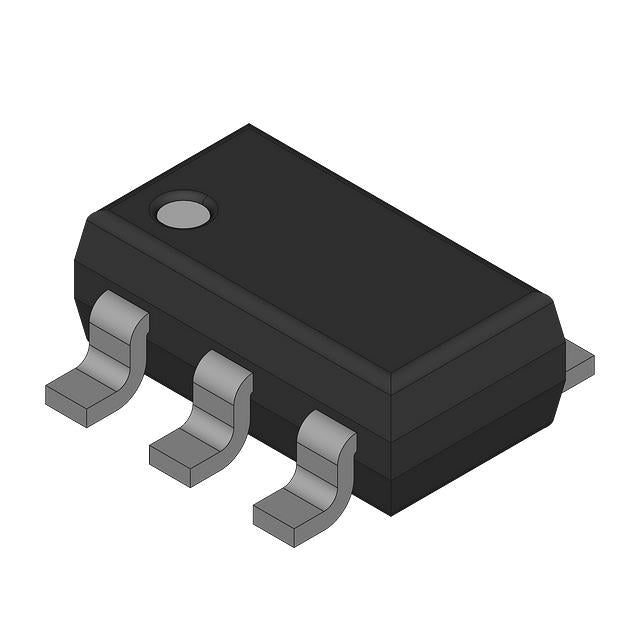

Analog Devices Inc./Maxim Integrated MAX8877EZK32+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.08 | $9.08 |
| 15+ | $2.09 | $31.35 |
| 25+ | $2.04 | $51.00 |
| 50+ | $1.93 | $96.50 |
| 100+ | $1.70 | $170.00 |
| N+ | $0.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | - |
| PSRR | 63dB (10kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The MAX8877EZK32+ is a fixed 3.15V low dropout linear regulator from Analog Devices Inc./Maxim Integrated, capable of delivering up to 150mA of output current. With a typical dropout voltage of 0.165V at full load, a low quiescent current of 180 µA, and a PSRR of 63dB at 10kHz, it provides clean and efficient power for noise-sensitive applications. The 5-pin TSOT-23 package is ideal for compact designs.
- Excellent High-Frequency PSRR: 63dB rejection at 10kHz ensures clean power for RF and audio circuits, reducing interference.
- Low Dropout Voltage: The 0.165V typical dropout at 150mA allows efficient operation from 3.3V rails.
- Low Quiescent Current: 180 µA quiescent current extends battery life in portable devices.
- Compact TSOT-23-5 Package: Saves board space while providing reliable thermal performance for 150mA loads.
RF Transceiver Power
The MAX8877EZK32+'s 3.15V output and 63dB PSRR at 10kHz make it ideal for powering RF transceivers, ensuring clean power that minimizes interference in wireless communications.
Portable GPS Devices
With a stable 3.15V output and low quiescent current, this LDO is perfect for GPS receivers that require consistent power for accurate positioning.
Digital Cameras
The 3.15V output can power image sensors and processing chips in digital cameras, with the high PSRR reducing noise-induced image artifacts.
Battery-Powered Audio Players
For portable audio devices, this regulator provides a clean 3.15V supply for audio codecs, with the 63dB PSRR at 10kHz minimizing audible noise.
Handheld Test Instruments
The compact TSOT-23-5 package and reliable performance make this LDO suitable for handheld multimeters and other test equipment requiring a stable 3.15V rail.
IoT Gateway Modules
In IoT gateways, this regulator powers communication modules and sensors, with the low dropout ensuring stable operation even as the battery discharges.
- Q: What is the output voltage of the MAX8877EZK32+?
- A: The MAX8877EZK32+ provides a fixed output voltage of 3.15V.
- Q: What is the maximum output current?
- A: This LDO can deliver up to 150mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range starts from 3.15V, suitable for 3.3V and higher supply rails.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.165V at 150mA, enabling efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is 180 µA, which helps preserve battery life in portable devices.
- Q: What is the PSRR of this regulator?
- A: The power supply rejection ratio is 63dB at 10kHz, providing excellent high-frequency noise filtering.
