Analog Devices Inc./Maxim Integrated MAX8877EZK33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.08 | $9.08 |
| 15+ | $2.09 | $31.35 |
| 25+ | $2.04 | $51.00 |
| 50+ | $1.93 | $96.50 |
| 100+ | $1.70 | $170.00 |
| N+ | $0.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.165V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

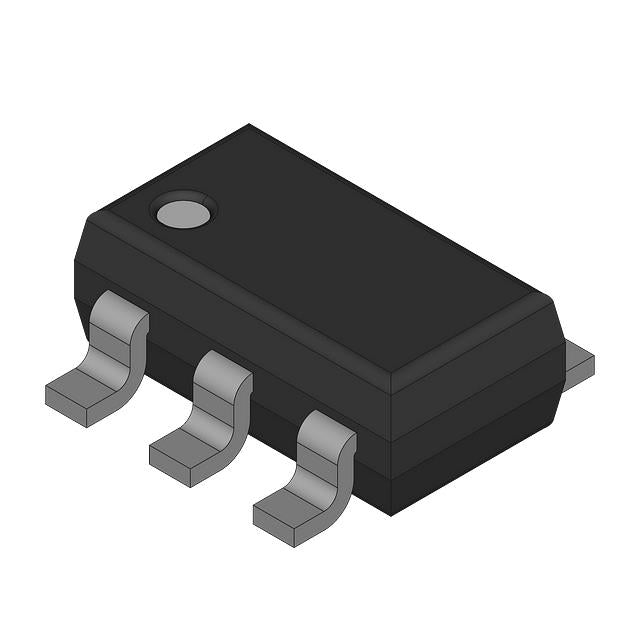

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
The MAX8877EZK33 is a 150mA low-dropout linear regulator from Analog Devices, providing a fixed 3.3V output. With a typical dropout of 165mV and quiescent current of 180µA, it is optimized for battery-powered and energy-efficient designs. The compact TSOT-23-5 package fits tight PCB layouts.
- Low Power Consumption: 180µA quiescent current reduces standby losses, ideal for battery life.
- Minimal Voltage Loss: 165mV dropout at 150mA ensures efficient operation near the battery voltage.
- Space-Saving Design: TSOT-23-5 package is 30% smaller than standard SOT-23, saving board area.
- Stable 3.3V Output: Fixed output eliminates external resistor dividers, simplifying design.
3.3V Logic Power Supply
Provides a stable 3.3V rail for microcontrollers and digital ICs with 150mA capacity, ideal for low-power embedded systems.
Battery-Operated IoT Sensors
The 180µA quiescent current and low dropout extend battery life in wireless sensor nodes that spend most time in standby.
Portable Audio Equipment
Low noise operation ensures clean power for audio codecs and amplifiers, maintaining signal integrity.
Automotive Interior Electronics
TSOT-23-5 package and reliable performance suit dashboard sensors and infotainment peripherals requiring 3.3V.
Handheld Test Instruments
Consistent 3.3V output under varying load conditions ensures accurate measurements in multimeters and calibrators.
- Q: What is the output voltage of the MAX8877EZK33?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage is 3.3V (typical operating condition).
- Q: What is the dropout voltage?
- A: Typical dropout is 165mV at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 180µA.
- Q: What package is available?
- A: It comes in a TSOT-23-5 package.
