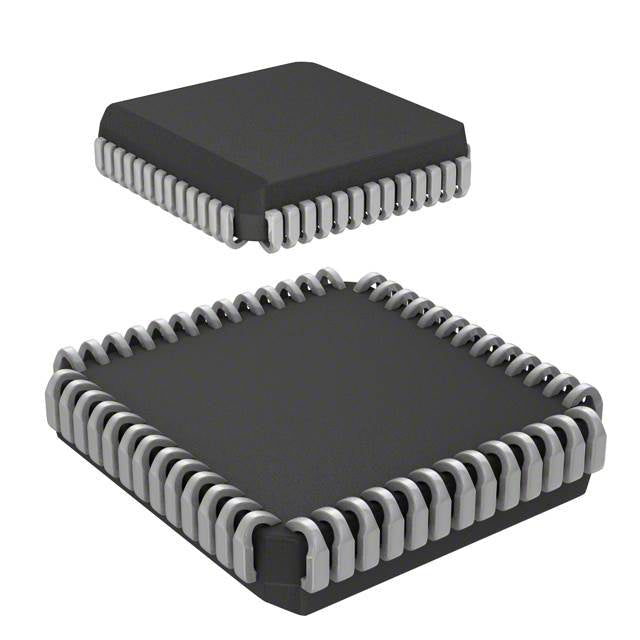

NXP USA Inc. MC68HC11A1MFNE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,889.44 | Dhs. 355,889.44 |
| 15+ | Dhs. 344,650.82 | Dhs. 5,169,762.30 |
| 25+ | Dhs. 337,158.41 | Dhs. 8,428,960.25 |
| 50+ | Dhs. 318,427.39 | Dhs. 15,921,369.50 |
| 100+ | Dhs. 280,965.35 | Dhs. 28,096,535.00 |
| N+ | Dhs. 56,193.07 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The MC68HC11A1MFNE is a high-performance 8-bit microcontroller from NXP USA Inc., part of the renowned HC11 series. This ROMless microcontroller operates at 3MHz and features 512 x 8 EEPROM and 256 x 8 RAM, making it ideal for embedded systems requiring flexible memory configurations. With 38 I/O pins, SCI and SPI connectivity, and an 8-channel 8-bit A/D converter, this microcontroller delivers versatile functionality for industrial control, automotive applications, and consumer electronics.
Key Features
- 8-Bit HC11 Core Processor: Reliable and proven architecture for embedded applications
- 3MHz Operating Speed: Efficient processing for real-time control systems
- ROMless Design: Flexible external memory configuration options
- 512 x 8 EEPROM & 256 x 8 RAM: Adequate memory for program storage and data handling
- 38 I/O Pins: Extensive peripheral connectivity options
- SCI & SPI Interfaces: Serial communication capabilities for device integration
- 8x8b A/D Converter: Analog signal processing for sensor applications
- Wide Operating Voltage: 4.5V to 5.5V supply range
- Extended Temperature Range: -40°C to 125°C for harsh environments
- Surface Mount Package: 52-PLCC (19.1x19.1) for compact PCB designs
- RoHS Compliant: Environmentally friendly manufacturing
Applications
The MC68HC11A1MFNE microcontroller is perfect for:
- Industrial automation and control systems
- Automotive electronics and engine management
- Consumer electronics and appliances
- Data acquisition systems
- Motor control applications
- Embedded system development and prototyping
Technical Specifications Summary
This microcontroller combines robust performance with versatile features. The HC11 core processor ensures reliable operation, while the ROMless architecture provides flexibility for custom applications. With POR (Power-On Reset) and WDT (Watchdog Timer) peripherals, the MC68HC11A1MFNE offers enhanced system reliability and fault tolerance.
Related Products & Resources
Explore our complete range of Microcontrollers for your embedded system needs. Visit our homepage to discover more electronic components and solutions. Stay updated with the latest industry insights and technical articles on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | HC11 |
| Packaging | | Tube |
| Core Processor | HC11 |
| Core Size | 8-Bit |
| Speed | 3MHz |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Number of I/O | 38 |
| Program Memory Size | - |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Package / Case | 52-LCC (J-Lead) |
| ROHS |  |
MC68HC11A1MFNE.pdf
