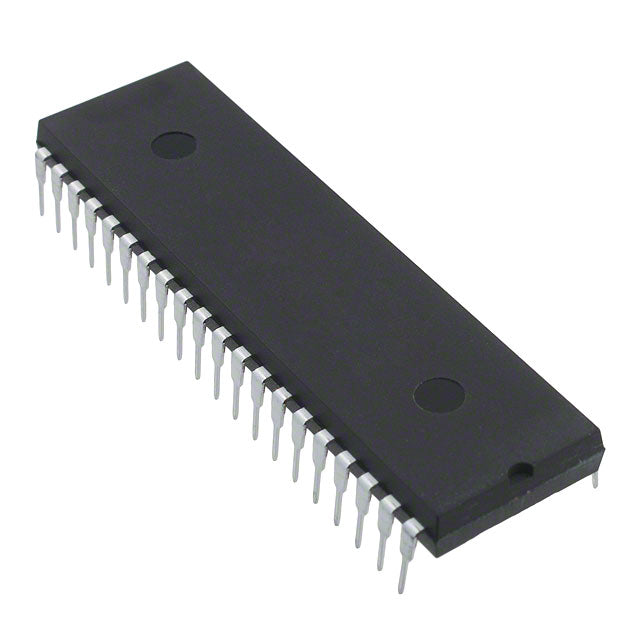

NXP USA Inc. MC705C8ACPE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
MC705C8ACPE - 8-Bit Microcontroller Overview
The MC705C8ACPE is a high-performance 8-bit microcontroller from NXP USA Inc., featuring the proven HC05 core architecture. Designed for embedded and industrial applications, this microcontroller delivers reliable performance at 2.1MHz with comprehensive peripheral support including SCI and SPI connectivity.
Key Features & Benefits
- 8-Bit HC05 Core: Proven architecture for efficient embedded control applications
- 8KB OTP Program Memory: One-time programmable memory (8K x 8) for secure code storage
- 304 x 8 RAM: Sufficient memory for data processing and temporary storage
- 24 I/O Pins: Flexible GPIO configuration for diverse interface requirements
- Dual Serial Interfaces: SCI and SPI connectivity for versatile communication options
- Built-in Protection: Power-On Reset (POR) and Watchdog Timer (WDT) peripherals
- Wide Operating Voltage: 3V to 5.5V supply range for flexible power design
- Industrial Temperature Range: -40°C to 85°C operation for harsh environments
- Through-Hole Package: 40-PDIP format for easy prototyping and reliable assembly
Applications
Ideal for industrial control systems, embedded automation, motor control, sensor interfaces, data acquisition systems, and legacy system maintenance. The OTP memory ensures code security for production deployments.
Why Choose HQICKEY?
At HQICKEY, we specialize in authentic semiconductor sourcing with comprehensive lifecycle support. Our commitment to quality ensures you receive genuine components with full traceability and technical support.
Related Products & Resources
Explore our complete range of Microcontrollers for embedded and industrial applications. Stay updated with the latest industry insights, technical guides, and product announcements on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | HC05 |
| Packaging | | Tube |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 2.1MHz |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Number of I/O | 24 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 304 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-PDIP |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| ROHS |  |
MC705C8ACPE.pdf
