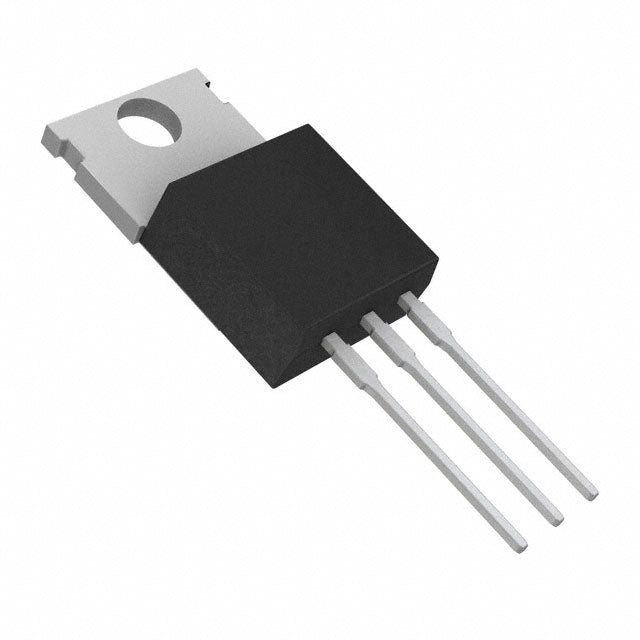

onsemi MC7805ABTG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | Factory |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 83dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| ROHS |  |
The MC7805ABTG from onsemi is a classic fixed 5V linear regulator capable of delivering 1A. With a typical dropout of 2V and excellent 83dB PSRR at 120Hz, it provides clean, stable power for a wide range of digital and analog circuits. The TO-220 package is easy to mount on heatsinks for thermal management.
- Proven Reliability: Industry-standard 7805 design with decades of field use.
- High PSRR: 83dB at 120Hz effectively filters AC ripple.
- Easy Thermal Management: TO-220 package allows simple heatsink attachment.
- Wide Input Range: Accepts 7V to 25V input, making it versatile for various power sources.
Microcontroller Power Supply
Provides a stable 5V rail for Arduino, PIC, and other MCU boards, with 83dB PSRR at 120Hz ensuring clean power for digital logic.
Sensor Modules
Ideal for powering 5V sensors like ultrasonic distance sensors, PIR motion detectors, and analog temperature sensors.
LED Lighting Drivers
Regulates 5V for constant-voltage LED strips and indicator lights in signage and decorative lighting.
Consumer Electronics
Used in set-top boxes, routers, and gaming peripherals to provide a reliable 5V logic supply.
Battery Chargers
Can be used to charge 5V USB devices from a higher voltage source, such as a 9V or 12V adapter.
DIY Electronics Projects
A go-to regulator for hobbyist projects requiring a simple, robust 5V supply from a 7-25V input.
- Q: What is the output voltage?
- A: The MC7805ABTG provides a fixed 5V output.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage should be between 7V and 25V for proper regulation.
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 2V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: It is available in a TO-220 package.
