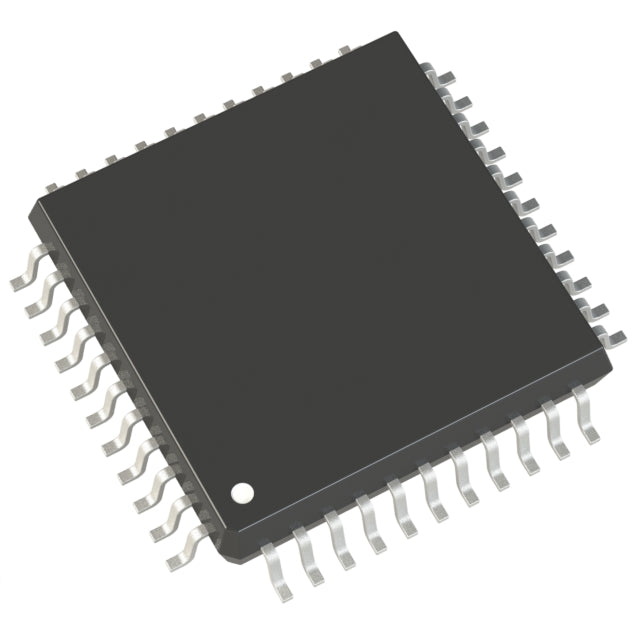

NXP USA Inc. MCF51JM32EVLD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.68 | $27.68 |
| 15+ | $6.37 | $95.55 |
| 25+ | $6.23 | $155.75 |
| 50+ | $5.88 | $294.00 |
| 100+ | $5.19 | $519.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | MCF51JM |
| Packaging | Tray | Tray |
| Core Processor | Coldfire V1 |
| Core Size | 32-Bit Single-Core |
| Speed | 50MHz |
| Connectivity | I2C, SCI, SPI, USB OTG |
| Peripherals | LVD, PWM, WDT |
| Number of I/O | 33 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The MCF51JM32EVLD from NXP is a ColdFire V1 microcontroller running at 50MHz. It offers 32KB flash and 16KB RAM, with a supply voltage range of 2.7V to 5.5V. Designed for cost-sensitive applications, it provides essential peripherals like PWM, LVD, and WDT in a compact 44-LQFP package.
- Wide voltage range: 2.7V to 5.5V simplifies power supply design.
- High temperature tolerance: -40°C to 105°C for harsh environments.
- Cost-effective: Suitable for high-volume consumer and industrial products.
- Compact package: 44-LQFP saves PCB space.
Automotive Body Electronics
The 5.5V operation and wide temperature range make it suitable for automotive lighting and switch control.
Industrial Actuators
PWM outputs and WDT ensure reliable control of valves and relays in factory automation.
Consumer Appliances
With 32KB flash, it can manage user interfaces and motor control in washing machines or microwaves.
Power Tools
High-voltage tolerance and robust design support battery-powered tool controllers.
HVAC Systems
LVD and PWM features enable efficient fan and compressor control in heating and cooling units.
Simple Sensor Nodes
Low pin count and adequate memory make it cost-effective for basic sensing applications.
- Q: What core does this MCU use?
- A: It uses the ColdFire V1 core.
- Q: What is the operating voltage?
- A: It operates from 2.7V to 5.5V.
- Q: How much flash memory is included?
- A: It has 32KB of flash memory.
- Q: What is the temperature range?
- A: It is rated for -40°C to 105°C.
