NXP USA Inc. MCIMX357DJQ5C

Product Overview

The MCIMX357DJQ5C from NXP USA Inc. is a high-performance microprocessor from the i.MX35 series, engineered for demanding industrial and embedded applications. Built on the ARM1136JF-S core architecture running at 532MHz, this MPU delivers exceptional processing power with integrated multimedia acceleration capabilities including GPU, IPU, and VFP co-processors.

Key Features & Benefits

• High-Performance Processing: ARM1136JF-S 32-bit core operating at 532MHz ensures responsive multitasking and real-time performance for time-critical embedded applications
• Advanced Memory Support: Compatible with LPDDR and DDR2 RAM controllers for flexible memory configurations, enabling scalable system designs from cost-optimized to high-performance implementations
• Rich Connectivity: Dual USB 2.0 with integrated PHY, 10/100Mbps Ethernet MAC, and extensive peripheral interfaces (CAN, I2C, SPI, UART, MMC/SDIO) provide comprehensive connectivity options for industrial IoT and networked embedded systems
• Multimedia Acceleration: Integrated graphics acceleration with dedicated GPU, Image Processing Unit (IPU), and LCD controller enable sophisticated HMI applications with smooth graphics rendering and video playback capabilities
• Industrial-Grade Reliability: Extended operating temperature range of -20°C to 70°C with advanced security features including Secure Fusebox, Secure JTAG, and tamper detection ensure robust operation in harsh industrial environments

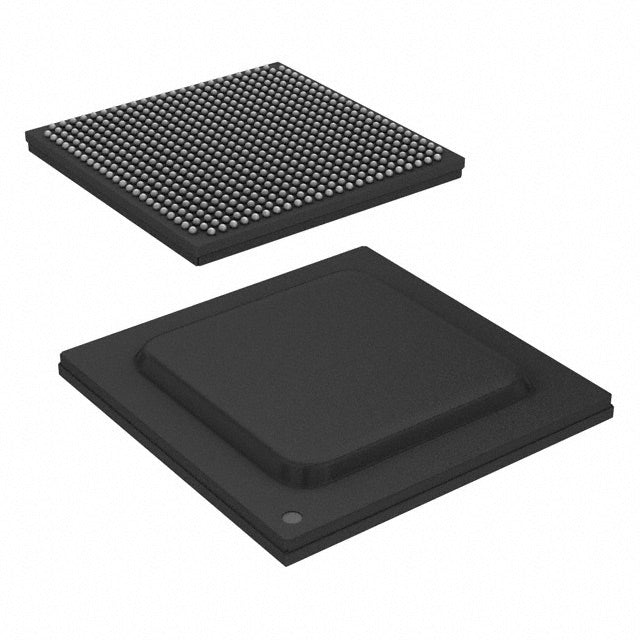

• Compact Form Factor: 400-LFBGA (17x17mm) surface mount package optimized for space-constrained designs while maintaining excellent thermal performance and signal integrity
• Comprehensive Interface Support: Multiple serial interfaces including 1-Wire, ASRC, ATA, I2S, SAI, and SSI enable seamless integration with diverse peripheral ecosystems
• Flexible I/O Voltage: Wide voltage range support (1.8V to 3.3V) allows direct interfacing with various logic families without level shifters, simplifying board design

• Core Architecture: ARM1136JF-S with VFP (Vector Floating Point) co-processor
• Clock Speed: 532MHz maximum operating frequency
• Memory Interfaces: LPDDR and DDR2 SDRAM controllers with flexible configuration
• Graphics: 2D/3D GPU with OpenGL ES support, dedicated IPU for image processing
• Display: LCD controller supporting various panel types and resolutions
• Networking: 10/100Mbps Ethernet MAC with MII/RMII interface
• USB: Two USB 2.0 host/device controllers with integrated PHY
• Security: Hardware cryptographic acceleration, secure boot, tamper detection
• Package: 400-pin LFBGA, 17mm x 17mm body size
• RoHS Compliant: Lead-free, environmentally friendly manufacturing

Applications

The MCIMX357DJQ5C is ideal for a wide range of industrial and embedded applications including:

• Industrial Automation: HMI panels, PLCs, industrial gateways, and process control systems
• Medical Devices: Patient monitoring systems, portable diagnostic equipment, and medical imaging devices
• Automotive Infotainment: In-vehicle information systems, rear-seat entertainment, and telematics units
• Portable Instrumentation: Handheld test equipment, data loggers, and field service tools
• Embedded Computing: Single-board computers, industrial PCs, and edge computing platforms
• Smart Building Systems: Building automation controllers, access control panels, and energy management systems
• Consumer Electronics: Smart home hubs, multimedia players, and connected appliances
