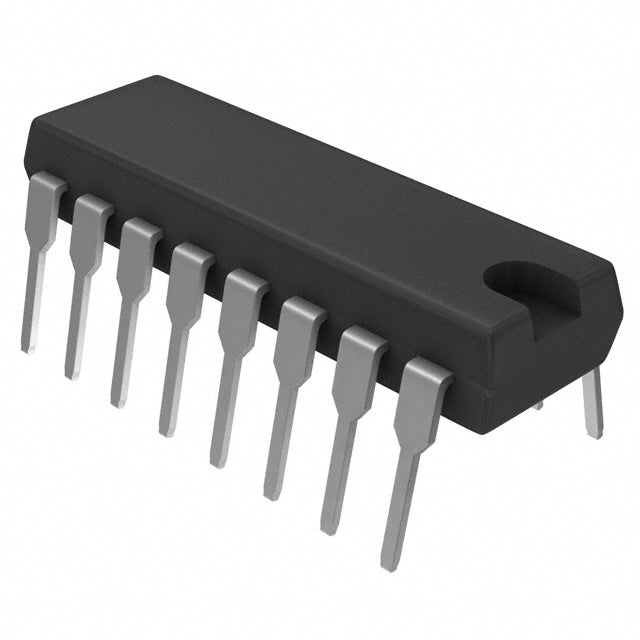

Microchip Technology MCP3008-I/P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.96 | $2.96 |
| 15+ | $2.87 | $43.05 |
| 25+ | $2.81 | $70.25 |
| 50+ | $2.65 | $132.50 |
| 100+ | $2.34 | $234.00 |
| N+ | $0.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 4, 8 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| ROHS |  |
The MCP3008-I/P is a 10-bit successive approximation register (SAR) Analog-to-Digital Converter from Microchip Technology. It offers 8 input channels that can be configured as single-ended or differential, providing flexibility for various sensor interfaces. With a fast sampling rate of 200 kSPS and a standard SPI interface, it is well-suited for data acquisition, audio sampling, and multi-sensor monitoring systems. The 16-pin DIP package ensures easy handling and breadboard compatibility for rapid prototyping.
- Multi-Channel Flexibility: 8 input channels (single-ended or differential) allow for monitoring multiple signals with a single device.
- High-Speed Sampling: 200 kSPS sampling rate enables capture of fast-changing signals for real-time applications.
- Easy to Use: The SPI interface and through-hole DIP package make it simple to integrate into both professional designs and hobbyist projects.
- Cost-Effective: 10-bit resolution provides a good balance between performance and cost for many embedded applications.
Data Acquisition Systems
The 200 kSPS sampling rate and 8-channel multiplexer make the MCP3008 ideal for multi-channel data logging systems in industrial and laboratory settings.
Sensor Arrays
With 8 analog inputs, this ADC can interface with multiple sensors like temperature, pressure, and light sensors simultaneously, simplifying system design.
Audio and Vibration Analysis
The high sampling rate supports basic audio digitization and vibration monitoring applications where moderate resolution is acceptable.
Battery Monitoring
It can be used to monitor multiple battery cells in a pack, providing voltage readings to a management system via a simple SPI interface.
Educational and Hobbyist Projects
The through-hole DIP package and simple SPI interface make it a popular choice for microcontroller-based projects and STEM education.
- Q: What type of ADC is the MCP3008-I/P?
- A: It is a successive approximation register (SAR) Analog-to-Digital Converter with a multiplexer and sample-and-hold circuit.
- Q: What is the resolution?
- A: The MCP3008 provides 10-bit resolution, offering 1024 discrete output levels.
- Q: What is the maximum sampling rate?
- A: It can achieve a sampling rate of 200 kSPS (kilo-samples per second).
- Q: How many input channels are available?
- A: It features 8 input channels that can be configured as 8 single-ended or 4 differential inputs.
- Q: What digital interface does it use?
- A: It uses the SPI interface for high-speed serial communication with a host controller.
- Q: What is the package type?
- A: It is available in a 16-pin DIP package, which is through-hole friendly for prototyping.
