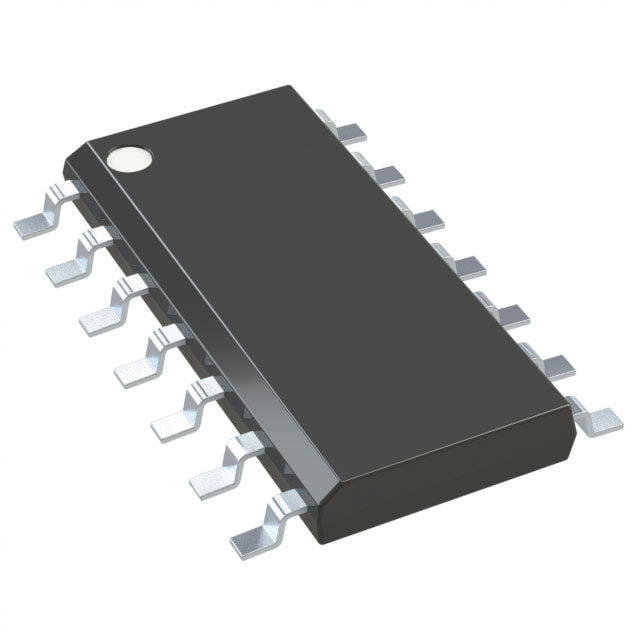

Microchip Technology MCP3302T-CI/SL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.25 | $14.25 |
| 15+ | $3.28 | $49.20 |
| 25+ | $3.20 | $80.00 |
| 50+ | $3.03 | $151.50 |
| 100+ | $2.67 | $267.00 |
| N+ | $0.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 13 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
The MCP3302T-CI/SL from Microchip Technology is a 13-bit, multichannel analog-to-digital converter with a maximum sampling rate of 100k SPS. It supports 2 or 4 input channels and communicates via an SPI interface. The device operates over a temperature range of -40°C to 85°C and is available in a 14-SOIC package. It is well-suited for industrial, automotive, and portable instrumentation applications where multiple analog signals need to be digitized accurately.
- Multiplexed Inputs: Supports 2 or 4 channels, reducing component count and simplifying system design.
- Good Resolution: 13-bit resolution provides accurate signal conversion for a wide range of applications.
- SPI Interface: Easy to connect to microcontrollers and digital signal processors.
- Wide Temperature Range: -40°C to 85°C ensures reliable operation in various environments.
Multi-Channel Data Acquisition
The 4-channel input capability and 100k SPS sampling rate make it suitable for data acquisition systems that need to monitor multiple analog signals, such as in environmental monitoring or process control.
Industrial Sensor Interfaces
With a temperature range of -40°C to 85°C, it can be used in industrial settings to interface with temperature, pressure, and position sensors, providing reliable digital readings.
Portable Instrumentation
The 13-bit resolution offers a good balance between accuracy and cost, making it ideal for portable instruments like handheld multimeters and field data loggers.
Automotive Electronics
Its operating temperature range and SPI interface make it suitable for automotive applications such as battery monitoring, motor control, and sensor conditioning in non-engine compartments.
Medical Devices
The multiple channels and moderate speed are well-suited for medical devices like patient monitors and diagnostic tools that require accurate digitization of physiological signals.
Embedded Control Systems
The simple SPI interface and small SOIC package make it easy to integrate into embedded systems for real-time control and monitoring applications.
- Q: What is the resolution of the MCP3302T-CI/SL?
- A: It is a 13-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 100k SPS.
- Q: How many channels does it have?
- A: It supports 2 or 4 input channels.
- Q: What interface does it use?
- A: It uses an SPI interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: It comes in a 14-SOIC (0.154", 3.90mm Width) package.
