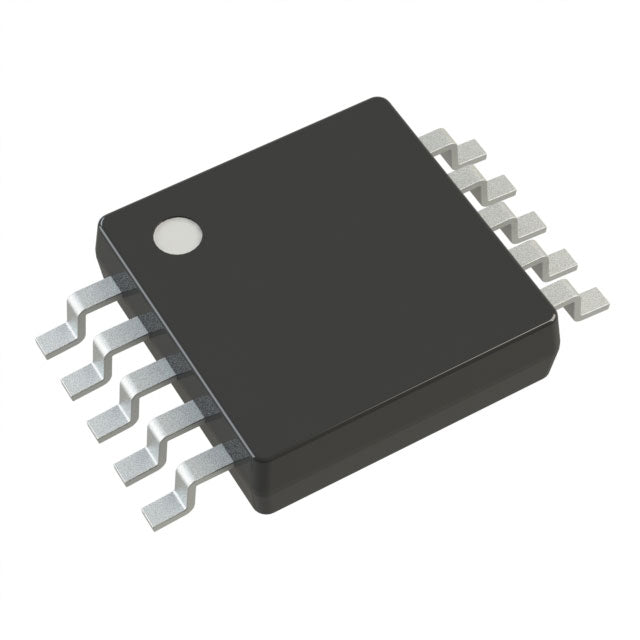

Microchip Technology MCP33121-05-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.47 | $4.47 |
| 15+ | $4.32 | $64.80 |
| 25+ | $4.23 | $105.75 |
| 50+ | $4.00 | $200.00 |
| 100+ | $3.53 | $353.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The MCP33121-05-E/MS from Microchip Technology is a 14-bit analog-to-digital converter with a sampling rate of 500 kSPS. It features a single input channel and SPI interface, with an external reference for precise voltage scaling. Packaged in a compact 10-TFSOP/MSOP, it operates from -40°C to 125°C, making it suitable for high-speed industrial, medical, and scientific applications.
- High-Speed Sampling: 500 kSPS enables capture of fast-changing signals for real-time analysis.
- 14-Bit Resolution: Provides excellent dynamic range for demanding measurement applications.
- SPI Interface: Ensures high-throughput data transfer to microcontrollers and DSPs.
- Wide Temperature Range: Reliable from -40°C to 125°C for harsh environments.
- Compact Package: The 10-MSOP footprint is ideal for space-limited designs.
High-Speed Data Acquisition
The 500 kSPS sampling rate and 14-bit resolution make the MCP33121-05-E/MS ideal for digitizing fast transient signals in test and measurement equipment.
Industrial Automation
Use this ADC for precise current and voltage monitoring in motor drives and power converters, where speed and accuracy are essential.
Medical Ultrasound
The high sampling rate supports ultrasound signal processing, capturing fine details for diagnostic imaging.
Vibration Analysis
Connect accelerometers to the single channel for high-frequency vibration monitoring in predictive maintenance systems.
Power Quality Monitoring
Sample AC waveforms at 500 kSPS to analyze harmonics and power quality in smart grid infrastructure.
Scientific Instruments
Integrate into spectrometers or particle detectors where high-speed, high-resolution conversion is required.
- Q: What type of ADC is the MCP33121-05-E/MS?
- A: It is a 14-bit analog-to-digital converter with a standard ADC architecture and external reference.
- Q: What is the resolution?
- A: The MCP33121-05-E/MS provides 14-bit resolution for high-precision conversion.
- Q: What is the sampling rate?
- A: It samples at 500 kSPS, suitable for high-speed data acquisition.
- Q: How many channels does it have?
- A: It has a single input channel, ideal for dedicated high-speed signal paths.
- Q: What interface does it use?
- A: It uses the SPI interface for fast digital communication.
- Q: What is the package type?
- A: It comes in a 10-TFSOP/10-MSOP package (0.118", 3.00mm width), operating from -40°C to 125°C.
