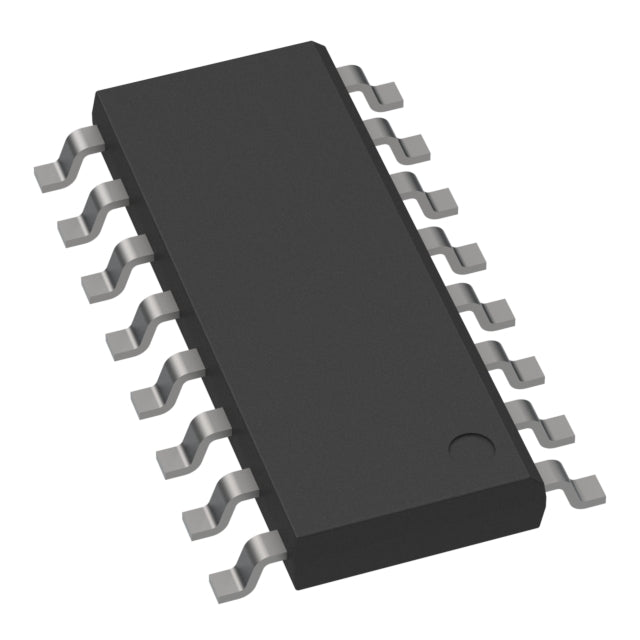

Monolithic Power Systems Inc. MP163CGSE-33-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.65 | $0.65 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 5.3 V |
| Voltage - Supply (Vcc/Vdd) | 5.4V ~ 6V |
| Duty Cycle | - |
| Frequency - Switching | 28kHz |
| Power (Watts) | 4 W |
| Fault Protection | Current Limiting, Over Load, Short Circuit |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
The MP163CGSE-33-Z from Monolithic Power Systems is a non-isolated offline switcher featuring an integrated 700V switch and up to 4 W output power. It supports Boost, Buck, Buck-Boost, and Flyback topologies at a 28kHz switching frequency, with a 5.3V start-up threshold and 5.4V to 6V Vcc supply. Current limiting, over-load, and short-circuit protection along with enable and soft-start control make it a versatile choice for low-power offline designs in a 16-SOIC package.
- Integrated 700V switch simplifies low-power offline designs and reduces external parts.
- Supports Boost, Buck, Buck-Boost, and Flyback topologies for design flexibility.
- Current limiting, over-load, and short-circuit protection enhance reliability.
- Enable and soft-start control enable controlled startup.
- Wide -40°C to 125°C junction temperature range for demanding environments.
Offline Auxiliary Power Supplies
The MP163CGSE-33-Z provides up to 4 W from a 700V internal switch, ideal for non-isolated auxiliary and bias supplies in offline equipment. The 28kHz switching frequency and 5.3V start-up threshold keep external circuitry minimal.
Buck and Buck-Boost Rails
With Buck and Buck-Boost support, the device can derive regulated low-voltage rails from a rectified AC bus. A 5.4V to 6V Vcc supply and integrated soft start support stable operation.
Non-Isolated Flyback Stages
In Flyback configurations, the MP163CGSE-33-Z offers a compact solution for small auxiliary power stages, backed by current limiting, over-load, and short-circuit protection.
Industrial and Appliance Electronics
The -40°C to 125°C junction temperature range and 16-SOIC package make this device suitable for industrial control, appliance, and metering designs requiring reliable offline power.
- Q: What topologies does the MP163CGSE-33-Z support?
- A: It supports Boost, Buck, Buck-Boost, and Flyback topologies in a non-isolated configuration.
- Q: What is the output power rating?
- A: The device is rated for up to 4 W.
- Q: Does it have an integrated switch?
- A: Yes, it includes an internal switch rated at 700V breakdown.
- Q: What is the switching frequency?
- A: It operates at 28kHz.
- Q: What package is used?
- A: It comes in a 16-SOIC package (0.154", 3.90mm width).
