Monolithic Power Systems Inc. MP26124GR-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.86 | $5.86 |
| 15+ | $5.68 | $85.20 |
| 25+ | $5.55 | $138.75 |
| 50+ | $5.24 | $262.00 |
| 100+ | $4.63 | $463.00 |
| N+ | $0.93 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 16.8V |
| Voltage - Supply (Max) | 24V |
| Interface | - |
| Operating Temperature | 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

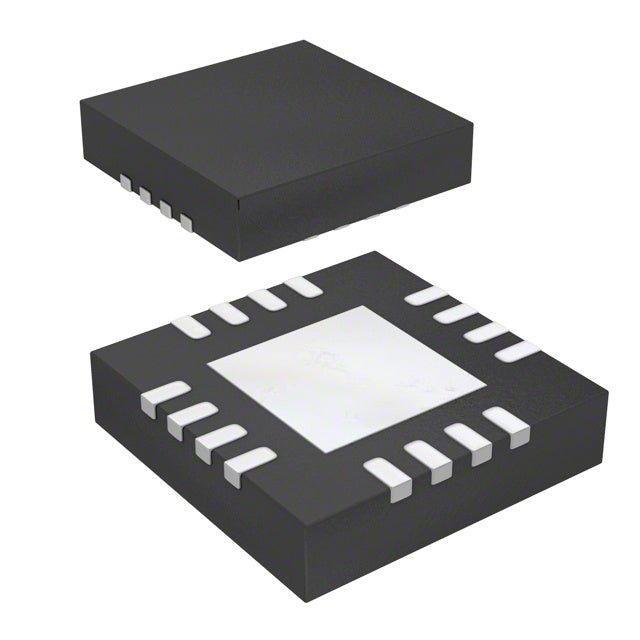

| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| ROHS |  |
The MP26124GR-P from Monolithic Power Systems is a Lithium Ion battery charger designed for 4-cell packs with a 16.8V output. It delivers a charge current of up to 2A and includes over-current and over-temperature protection for enhanced safety. Housed in a 16-VQFN Exposed Pad package, this charger is optimized for power tools, robotics, and portable medical devices that require efficient and reliable charging.
- High charge current: 2A capability enables faster charging cycles for demanding applications.
- Integrated protection: Over-current and over-temperature safeguards protect both the charger and battery pack.
- 4-cell Lithium Ion support: Specifically designed for 16.8V packs, ensuring proper voltage regulation.
- Compact VQFN package: Exposed pad enhances thermal dissipation, improving reliability in high-current designs.
Power Tools
The 2A charge current and 4-cell Lithium Ion support make this charger ideal for cordless power tools requiring fast, reliable charging of 16.8V battery packs.
Portable Medical Equipment
With over-current and over-temperature protection, this charger ensures safe operation in battery-powered medical devices that demand high reliability.
Robotics and Drones
The 16.8V output for 4-cell packs is well-suited for robotics and drone applications where high energy density and efficient charging are critical.
Electric Bicycles
For e-bike battery packs, the MP26124GR-P provides robust charging with thermal protection, ensuring longevity of Lithium Ion cells.
Industrial Handhelds
Rugged handheld scanners and PDAs benefit from the 2A charging capability and compact VQFN package, enabling fast turnaround in field operations.
- Q: What battery chemistry does the MP26124GR-P support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 4-cell battery packs.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery pack voltage for this charger?
- A: The battery pack voltage is 16.8V.
- Q: What fault protections are included?
- A: It includes Over Current and Over Temperature protection.
- Q: What package is the MP26124GR-P available in?
- A: It comes in a 16-VQFN Exposed Pad package.
