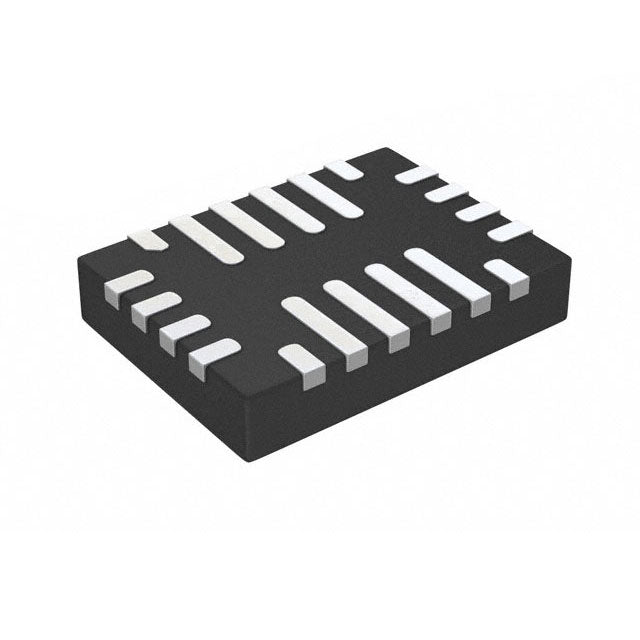

Monolithic Power Systems Inc. MP2617HGL-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.12 | $4.12 |
| 15+ | $3.99 | $59.85 |
| 25+ | $3.91 | $97.75 |
| 50+ | $3.69 | $184.50 |
| 100+ | $3.26 | $326.00 |
| N+ | $0.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 14V |
| Interface | USB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTFQFN |
| Supplier Device Package | 20-QFN (3x4) |
| ROHS |  |
The Monolithic Power Systems MP2617HGL-P is a single-cell Lithium Ion battery charger IC with a USB interface. It delivers a maximum charge current of 3A for a 4.2V battery. The device features Over Temperature protection and operates over a wide -40°C to 125°C junction temperature range. Its 20-PowerTFQFN package makes it suitable for portable consumer electronics requiring fast charging.
- High-Speed Charging: 3A charge current significantly reduces charging time for single-cell Li-Ion batteries.
- USB Compatibility: Integrated USB interface allows easy control and integration with standard charging protocols.
- Extended Temperature Range: -40°C to 125°C junction temperature supports demanding applications.
- Compact Footprint: 20-PowerTFQFN package saves board space in portable devices.
Smartphones and Tablets
Charge single-cell Li-Ion batteries in mobile devices with up to 3A current, enabling rapid charging for high-capacity batteries. The USB interface simplifies integration with standard charging ports.
Power Banks
Implement efficient charging in portable power banks. The high 3A charge current reduces recharge time for the internal battery, improving user convenience.
Wearable Devices
Power charging circuits in smartwatches and fitness trackers. The compact 20-PowerTFQFN package is suitable for miniaturized designs.
Portable Speakers
Drive reliable charging for Bluetooth speakers with single-cell Li-Ion batteries. The wide temperature range supports operation in outdoor environments.
Digital Cameras
Provide fast and safe charging for camera batteries. Over Temperature protection ensures safe operation during extended charging sessions.
- Q: What battery chemistry does the MP2617HGL-P support?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells can it charge?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What interface does it use?
- A: It uses a USB interface for control.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TJ).
MP2617HGL-P.pdf
