Monolithic Power Systems Inc. MP2619EV-LF-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.47 | $4.47 |
| 15+ | $4.33 | $64.95 |
| 25+ | $4.24 | $106.00 |
| 50+ | $4.00 | $200.00 |
| 100+ | $3.53 | $353.00 |
| N+ | $0.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 2 ~ 3 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 2A |
| Battery Pack Voltage | 12.6V |
| Voltage - Supply (Max) | 24V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

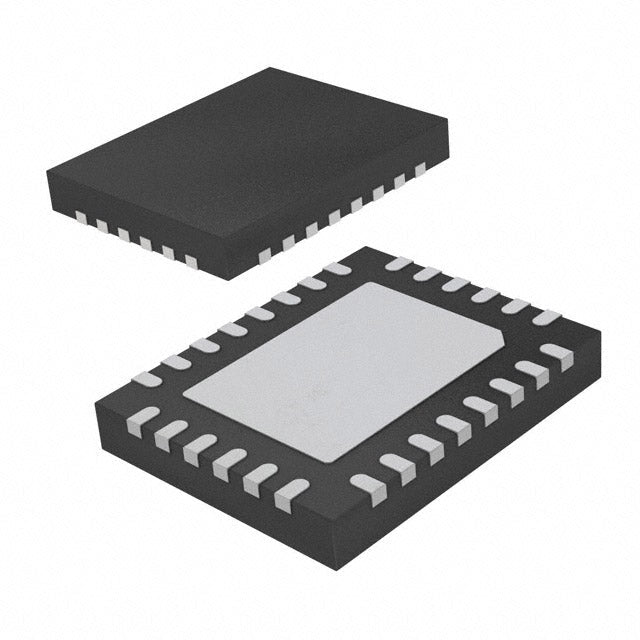

| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The MP2619EV-LF-P is a switch-mode battery charger IC from Monolithic Power Systems, engineered for 2 to 3 series Lithium Ion battery packs. It delivers a programmable charge current up to 2A and targets a 12.6V battery voltage. Built-in over-current and over-temperature protections safeguard the charging process. The device operates across a wide junction temperature range of -40°C to 125°C and is offered in a compact 28-VFQFN exposed pad package, making it suitable for space-constrained industrial and portable applications.
- Wide temperature operation: Junction temperature range of -40°C to 125°C enables use in demanding industrial environments.
- High charge current: Up to 2A charge current reduces charging time for multi-cell packs.
- Multi-cell support: Handles 2-3 series cells, providing flexibility for various battery pack designs.
- Integrated protection: Over-current and over-temperature features enhance system safety and reliability.
Industrial Portable Equipment
With a wide junction temperature range of -40°C to 125°C, this charger is suitable for industrial handheld scanners and rugged tablets that may be exposed to harsh environments.
Medical Devices
The 2-3 cell Lithium Ion configuration with a 12.6V pack voltage is ideal for portable medical monitors and infusion pumps that require reliable, regulated charging.
High-Capacity Power Banks
Supporting up to 2A charge current, this IC enables faster charging of multi-cell power banks used for field operations and emergency backup.
Robotics and Drones
The 2-3 cell stack and 2A capability make it suitable for charging Li-ion packs in small to medium-sized robots and drones where thermal performance is critical.
Communication Equipment
Two-way radios and portable communication devices benefit from the robust over-current and over-temperature protections, ensuring safe operation in demanding field conditions.
- Q: What battery chemistry does the MP2619EV-LF-P support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 2 to 3 series cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 2A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 12.6V.
- Q: What fault protections are included?
- A: It includes Over Current and Over Temperature protection.
- Q: What is the operating temperature range?
- A: The junction temperature range is -40°C to 125°C.
