Monolithic Power Systems Inc. MP2632BGR-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.01 | $5.01 |
| 15+ | $4.85 | $72.75 |
| 25+ | $4.74 | $118.50 |
| 50+ | $4.48 | $224.00 |
| 100+ | $3.95 | $395.00 |
| N+ | $0.79 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.45V |
| Voltage - Supply (Max) | 6V |
| Interface | USB |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

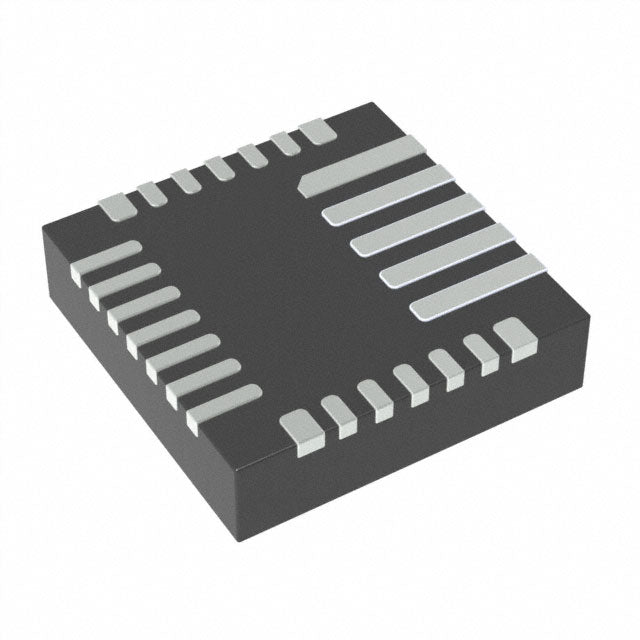

| Package / Case | 26-PowerVFQFN |
| Supplier Device Package | 26-QFN (4x4) |
| ROHS |  |
The Monolithic Power Systems MP2632BGR-P is a highly integrated USB-compatible battery charger for single-cell Lithium Ion/Polymer batteries. It supports a charge current up to 3A and a battery voltage of 4.45V. This device offers comprehensive protection including over-current, over-voltage, over-temperature, and short-circuit. Housed in a 26-PowerVFQFN package, it operates over a wide -40°C to 125°C range.
- High-Speed Charging: Delivers up to 3A charge current for rapid charging of modern high-capacity batteries.
- USB Interface Compatibility: Simplifies design for USB-powered applications and standard wall adapters.
- Robust Protection Suite: Safeguards against over-current, over-voltage, over-temperature, and short-circuit events.
- Extended Temperature Range: Operates reliably from -40°C to 125°C, suitable for demanding environments.
USB-Powered Charging Devices
With a USB interface and 3A charge capability, the MP2632BGR-P is perfect for devices charged directly from USB ports or adapters.
High-Capacity Smartphones
For phones with large 4.45V batteries, this charger provides the high current needed to reduce charging time significantly.
Tablets and Phablets
The 3A charge current supports the larger battery capacities found in tablets, ensuring efficient and timely charging.
Portable Gaming Consoles
This IC can manage the high power demands of gaming handhelds, providing robust charging with comprehensive protection.
Industrial Handhelds
Rated for operation up to 125°C, it is suitable for rugged handheld devices used in harsh industrial environments.
- Q: What battery chemistry does the MP2632BGR-P support?
- A: It supports Lithium Ion and Lithium Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.45V.
- Q: What interface does it use?
- A: It uses a USB interface.
- Q: What fault protections are available?
- A: It includes Over Current, Over Temperature, Over Voltage, and Short Circuit protection.
MP2632BGR-P.pdf
