Monolithic Power Systems Inc. MP2636GR-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.31 | $5.31 |
| 15+ | $5.14 | $77.10 |
| 25+ | $5.03 | $125.75 |
| 50+ | $4.75 | $237.50 |
| 100+ | $4.19 | $419.00 |
| N+ | $0.84 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 3A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

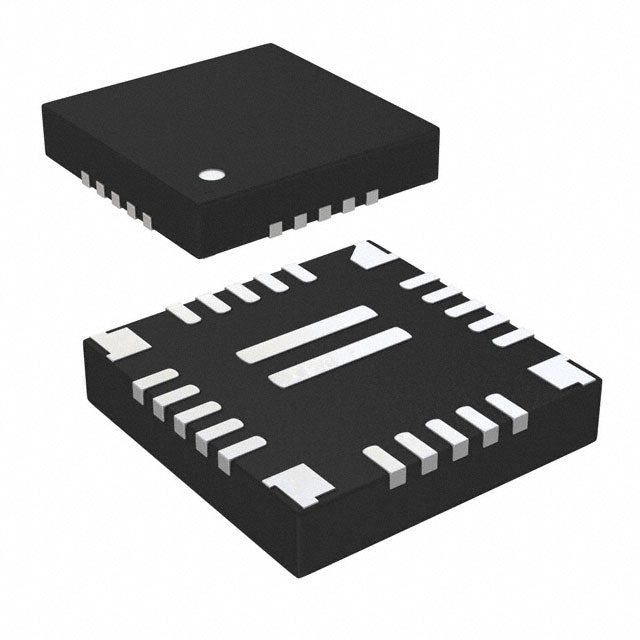

| Package / Case | 30-PowerVFQFN |
| Supplier Device Package | 30-QFN (4x4) |
| ROHS |  |
The MP2636GR-P from Monolithic Power Systems is a 3A battery charger designed for single-cell Lithium Ion and Lithium Polymer batteries. It provides a regulated 4.2V charge voltage and includes essential protections such as Over Temperature, Over Voltage, and Short Circuit. Housed in a 30-PowerVFQFN package, this charger operates over a wide junction temperature range of -40°C to 125°C, making it suitable for portable electronics and power tools.
- High Efficiency Charging: 3A current capability supports rapid charging for single-cell Li-Ion/Polymer batteries.
- Comprehensive Safety: Integrated Over Temperature, Over Voltage, and Short Circuit protection ensures safe operation.
- Extreme Temperature Tolerance: Rated for junction temperatures up to 125°C, ideal for high-power or thermally challenging applications.
- Compact Design: The 30-PowerVFQFN package minimizes PCB footprint for space-constrained designs.
Power Banks
The MP2636GR-P's 3A charge current and support for Lithium Ion/Polymer cells make it an excellent choice for power banks, enabling fast and safe recharging of internal batteries.
Portable Speakers
With a compact 30-PowerVFQFN package and robust protection features, this charger is well-suited for portable Bluetooth speakers that require reliable single-cell charging.
Handheld Gaming Consoles
The wide operating temperature range and 4.2V battery voltage support make it ideal for handheld gaming devices that may experience heat buildup during extended use.
Medical Monitoring Devices
Its Over Temperature and Short Circuit protections ensure safe operation in wearable medical devices that monitor patient vitals, where reliability is critical.
Smart Home Sensors
For battery-powered smart home sensors, this charger provides a dependable charging solution with a high junction temperature tolerance of up to 125°C.
- Q: What battery chemistries are supported?
- A: This charger supports Lithium Ion and Lithium Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for single-cell (1) applications.
- Q: What is the maximum charge current?
- A: The maximum charge current is 3A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.2V.
- Q: What protections are included?
- A: It features Over Temperature, Over Voltage, and Short Circuit protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TJ).
