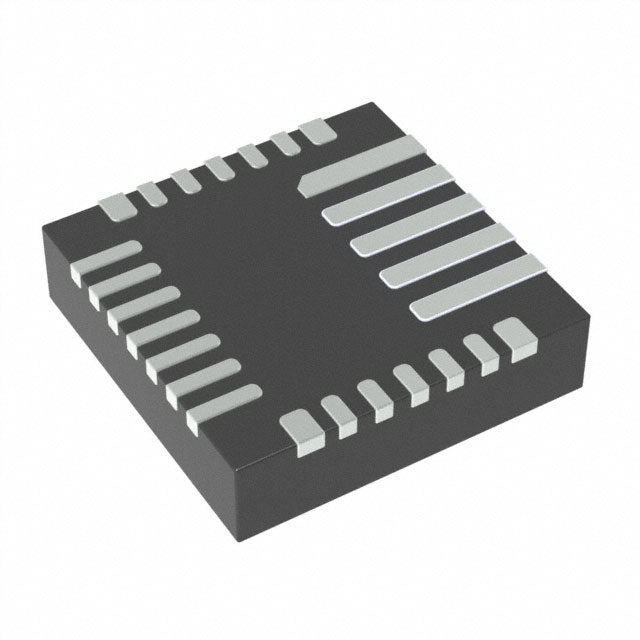

Monolithic Power Systems Inc. MP2690GR-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.12 | $5.12 |
| 15+ | $4.96 | $74.40 |
| 25+ | $4.85 | $121.25 |
| 50+ | $4.58 | $229.00 |
| 100+ | $4.04 | $404.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Voltage |
| Charge Current - Max | 2.5A |
| Battery Pack Voltage | 4.45V |
| Voltage - Supply (Max) | 6V |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 26-PowerVFQFN |
| Supplier Device Package | 26-QFN (4x4) |
| ROHS |  |
The Monolithic Power Systems MP2690GR-Z is a high-performance, single-cell battery charger designed for Lithium Ion/Polymer batteries. It delivers a maximum charge current of 2.5A to a battery with a voltage of 4.45V. This charger integrates essential protection features like overcurrent and overvoltage safeguards to ensure safe operation. Its compact PowerVFQFN package and wide operating temperature range make it an excellent choice for space-constrained portable electronics that demand reliable and fast charging.
- Fast Charging for Portables: Provides up to 2.5A charge current, minimizing charging time for modern devices.
- Space-Saving Design: The compact 26-PowerVFQFN package is ideal for slim and small electronic devices.
- High-Temperature Operation: Rated for operation up to 125°C (TJ), suitable for demanding internal environments.
- Essential Safety Protections: Includes overcurrent and overvoltage protection to prevent damage to the battery.
Compact Consumer Electronics
The MP2690GR-Z is perfect for smartphones, tablets, and other portable devices that require a high charge current of up to 2.5A for a single Li-Ion/Polymer cell, ensuring quick and efficient charging.
Wearable Technology
Its small 26-PowerVFQFN package and high-temperature tolerance (up to 125°C) make it suitable for wearables that may be exposed to elevated temperatures during operation or charging.
Portable Power Banks
For power banks, this charger provides a reliable and safe charging solution for the internal single-cell battery, with overcurrent and overvoltage protection to ensure longevity.
Handheld Medical Devices
The wide junction temperature range allows for use in handheld medical devices that require dependable charging in various environmental conditions.
Digital Cameras and Drones
This IC can efficiently manage the charging of high-capacity single-cell batteries used in cameras and small drones, balancing speed and safety.
- Q: What battery chemistry does the MP2690GR-Z support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 2.5A.
- Q: What is the battery voltage?
- A: The battery voltage is 4.45V.
- Q: What fault protections are included?
- A: It includes Over Current and Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TJ).
