Monolithic Power Systems Inc. MPQ2013AGQ-33-AEC1-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.54 | $2.54 |
| 15+ | $2.46 | $36.90 |
| 25+ | $2.40 | $60.00 |
| 50+ | $2.27 | $113.50 |
| 100+ | $2.00 | $200.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 10 µA |
| Current - Supply (Max) | 50 µA |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

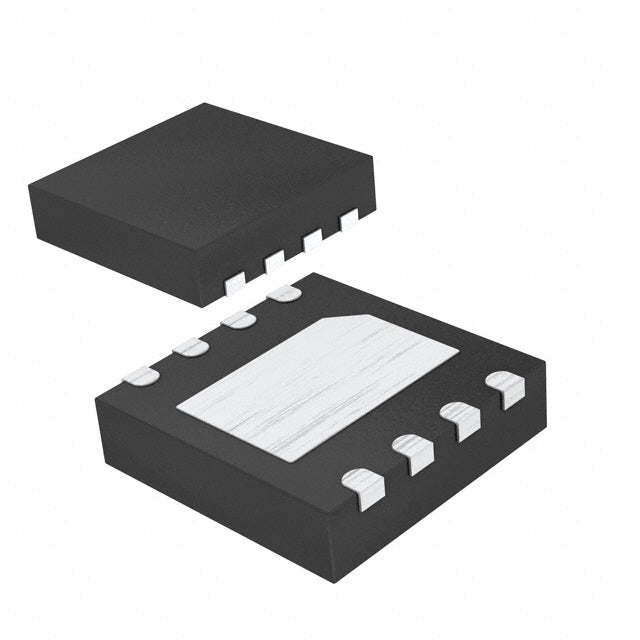

| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) |
| ROHS |  |
The MPQ2013AGQ-33-AEC1-Z from Monolithic Power Systems is an ultra-low quiescent current 3.3V LDO regulator in a compact 8-QFN package. Delivering 150mA with a dropout of 1.1V, it is optimized for battery-powered and automotive applications. The 10µA quiescent current is among the lowest in its class, significantly extending battery life. Its AEC-Q100 qualification ensures reliability in automotive environments.
- Ultra-low quiescent current (10µA): Extends battery life in portable and always-on devices by minimizing standby power consumption.
- Compact 8-QFN (3x3mm): Saves board space in space-constrained designs like wearables and IoT modules.
- AEC-Q100 qualified: Meets automotive reliability standards for use in vehicle electronics.
- Wide PSRR range (58dB @ 100Hz to 41dB @ 1kHz): Effectively filters both low and high-frequency noise.
Battery-Powered IoT Sensors
The 10µA quiescent current dramatically extends battery life in wireless sensor nodes, making it perfect for always-on monitoring.
Wearable Health Monitors
Compact 3x3mm QFN package fits tight PCB layouts in smartwatches and fitness bands, providing stable 3.3V for sensors and MCUs.
Portable Medical Devices
Low dropout of 1.1V ensures operation from a single Li-ion cell, powering glucose meters and pulse oximeters reliably.
Energy Harvesting Systems
With ultra-low quiescent current, it efficiently regulates power from solar cells or thermoelectric generators in remote installations.
Automotive Sensor Modules
AEC-Q1 qualified, it powers tire pressure sensors and airbag accelerometers with stable 3.3V in harsh conditions.
Smart Home Controllers
Provides clean power for Zigbee and Z-Wave modules, with PSRR up to 58dB to reject switching noise from DC-DC converters.
- Q: What is the output voltage of the MPQ2013AGQ-33?
- A: It provides a fixed 3.3V output voltage.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range supports up to 3.3V nominal, designed for low-voltage rails.
- Q: What is the dropout voltage?
- A: Dropout is 1.1V at 150mA load.
- Q: What is the quiescent current?
- A: Ultra-low quiescent current of only 10µA, ideal for battery-powered applications.
- Q: What package is available?
- A: It comes in an 8-QFN (3x3mm) package.
