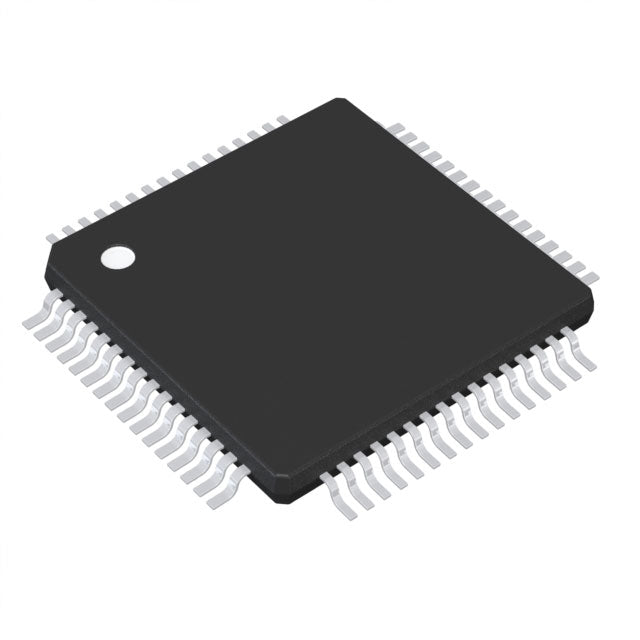

Texas Instruments MSP430FR59941IPM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.12 | $25.12 |
| 15+ | $5.78 | $86.70 |
| 25+ | $5.65 | $141.25 |
| 50+ | $5.34 | $267.00 |
| 100+ | $4.71 | $471.00 |
| N+ | $0.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Tray | NULL |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 17x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Texas Instruments MSP430FR59941IPM is an ultra-low-power 16-bit MCU featuring 256KB of FRAM and 8KB of SRAM. Housed in a 64-LQFP, it operates at 16MHz with a 1.8V to 3.6V supply. Its integrated DMA, PWM, and brown-out detection make it a versatile choice for energy-conscious embedded applications.
- Ultra-Low Power: 1.8V operation and optimized low-power modes extend battery life in portable devices.
- FRAM Memory: Combines speed of RAM with non-volatility of flash, offering high endurance and instant writes.
- Integrated DMA: Offloads data transfer tasks, freeing the CPU for other processing.
- Compact Package: 64-LQFP provides a good balance of I/O and board space.
Low-Power Sensor Nodes
With 1.8V operation and FRAM's instant write capability, this MCU is ideal for battery-powered IoT sensors requiring frequent data logging.
Smart Meters
Use the low-power modes and integrated ADC for accurate energy measurement in smart grid applications.
Wearable Health Monitors
The small 64-LQFP footprint and low active power enable compact, long-lasting wearable devices for continuous biometric monitoring.
Industrial Process Control
Leverage the PWM and WDT for reliable control loops in factory automation, with FRAM ensuring data retention during power loss.
Portable Instrumentation
Combine the 16MHz CPU and DMA for real-time signal processing in handheld test equipment.
Data Logging Systems
FRAM's high endurance (10^15 write cycles) makes it perfect for high-frequency data logging without flash wear concerns.
- Q: What is the core architecture of the MSP430FR59941IPM?
- A: It uses the MSP430 CPUXV2 16-bit RISC core running at up to 16MHz.
- Q: How much FRAM memory does it have?
- A: It features 256KB of Ferroelectric RAM (FRAM) for program and data storage.
- Q: What is the operating voltage range?
- A: The supply voltage ranges from 1.8V to 3.6V, suitable for battery-powered designs.
- Q: Does it include a DMA controller?
- A: Yes, it has an integrated DMA module for efficient data transfers without CPU intervention.
- Q: What package is this device available in?
- A: It comes in a 64-pin LQFP package.
