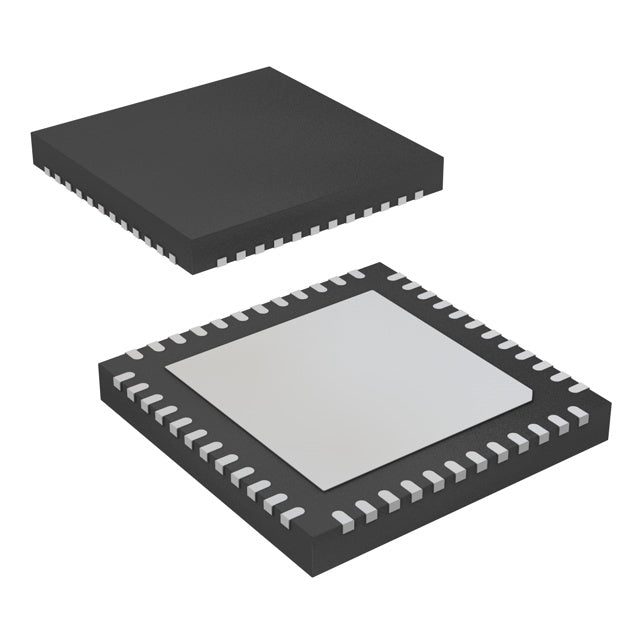

Texas Instruments MSP430FR5994IRGZT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.97 | $9.97 |
| 15+ | $9.65 | $144.75 |
| 25+ | $9.44 | $236.00 |
| 50+ | $8.92 | $446.00 |
| 100+ | $7.87 | $787.00 |
| N+ | $1.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-VQFN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The MSP430FR5994IRGZT from Texas Instruments is an ultra-low-power 16-bit MCU featuring 256KB of FRAM and 8KB SRAM. Its 16MHz CPUXV2 core and rich analog peripherals make it ideal for energy-conscious applications. The 48-VFQFN package is compact for space-constrained designs.
- FRAM Technology: Combines speed, endurance, and low power for data storage.
- Ultra-Low Power: Extends battery life in portable devices.
- Fast Wake-Up: Enables responsive event-driven processing.
- Integrated Peripherals: DMA, PWM, and BOD reduce external components.
Ultra-Low-Power Sensing
The 16MHz CPUXV2 with FRAM enables rapid wake-up and data logging for battery-powered environmental sensors.
Smart Meters
FRAM's high endurance and fast write speed are perfect for frequent meter readings and tamper logs.
Wearable Health Monitors
Low power consumption and small 48-VFQFN package fit compact fitness trackers and ECG patches.
Energy Harvesting Devices
Operating at 1.8V and low active current allows operation from solar or thermal harvesters.
Industrial Process Controllers
DMA and PWM features support real-time control loops in chemical and food processing.
Data Loggers
FRAM provides virtually unlimited write cycles, ideal for continuous data recording.
- Q: What is unique about this MSP430?
- A: It uses Ferroelectric RAM (FRAM) for program and data, offering fast writes and low power.
- Q: What is the core speed?
- A: The MSP430 CPUXV2 runs at up to 16MHz.
- Q: How much FRAM is available?
- A: It has 256KB of FRAM and 8KB of SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: What package is this?
- A: It comes in a 48-VFQFN package with exposed pad.
