Texas Instruments MSP430G2333IRHB32R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.46 | $1.46 |
| 15+ | $1.42 | $21.30 |
| 25+ | $1.39 | $34.75 |
| 50+ | $1.31 | $65.50 |
| 100+ | $1.16 | $116.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

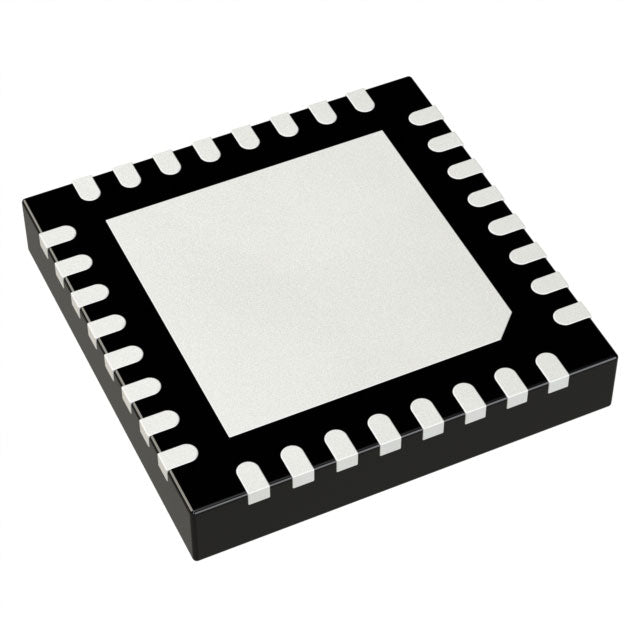

| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The MSP430G2333IRHB32R from Texas Instruments is a 16-bit ultra-low-power MCU. It runs at 16MHz with 4KB flash and 256 bytes RAM. The 32-VFQFN package is space-efficient. Operating from 1.8V to 3.6V, it includes brown-out detection, PWM, and WDT. Designed for -40°C to 85°C, it fits battery-powered and industrial applications.
- Ultra-low power 16-bit core – extends battery life in portable devices.
- Wide voltage range (1.8V-3.6V) – flexible power supply design.
- 16MHz speed – handles complex algorithms despite small memory.
- Compact 32-VFQFN – ideal for miniaturized IoT modules.
Battery-Powered Sensors
1.8V operation and 16MHz speed enable energy-efficient data logging in wireless nodes.
Wearable Health Monitors
Low voltage and small QFN package fit compact PCB designs for heart-rate or activity tracking.
Industrial Process Controllers
4KB flash stores calibration tables; PWM drives analog outputs for valve control.
Smart Meters
16-bit core handles precise calculations for energy measurement at low power.
Portable Instruments
Wide voltage range supports direct battery connection without regulation.
Automotive Body Electronics
-40°C to 85°C rating suits interior modules like window lift controllers.
- Q: What is the core architecture?
- A: MSP430 CPU16 (16-bit RISC).
- Q: What is the maximum clock speed?
- A: 16MHz.
- Q: What is the supply voltage range?
- A: 1.8V to 3.6V.
- Q: How much flash memory is included?
- A: 4KB.
- Q: What package is this?
- A: 32-VFQFN exposed pad.
