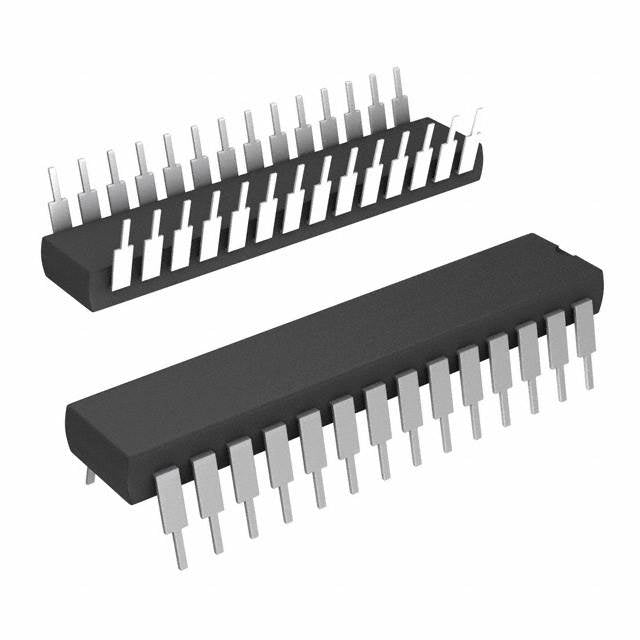

Analog Devices Inc./Maxim Integrated MX7582KN+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $225.44 | $225.44 |
| 15+ | $49.92 | $748.80 |
| 25+ | $48.83 | $1,220.75 |
| 50+ | $46.12 | $2,306.00 |
| 100+ | $40.70 | $4,070.00 |
| N+ | $8.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 15V |
| Voltage - Supply, Digital | 15V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
The MX7582KN from Analog Devices Inc./Maxim Integrated is a 12-bit analog-to-digital converter featuring a MUX-ADC architecture with 4 multiplexed input channels. It utilizes a parallel interface for efficient data transfer and requires an external voltage reference for conversion accuracy. Housed in a 28-pin DIP package, this ADC operates over a commercial temperature range of 0°C to 70°C, making it suitable for industrial control, data acquisition, and multi-sensor monitoring applications.
- Multi-Channel Integration: The built-in 4-channel multiplexer reduces external component count and simplifies PCB layout, lowering system cost.
- Parallel Interface Speed: The parallel output enables fast data reads, ideal for real-time control loops and high-throughput data acquisition.
- Proven MUX-ADC Architecture: The integrated multiplexer and converter architecture ensures reliable sequential sampling of multiple signals with consistent 12-bit accuracy.
- Through-Hole Package: The 28-DIP package is easy to prototype with and solder, facilitating manual assembly and breadboard testing.
Industrial Process Control
The MX7582KN's 4-channel multiplexed input and 12-bit resolution make it ideal for monitoring multiple analog sensors (temperature, pressure, flow) in industrial control systems, enabling accurate digitization for PLCs and process controllers.
Data Acquisition Systems
With its parallel interface and MUX-ADC architecture, the MX7582KN excels in multi-channel data acquisition systems where several analog signals need to be sampled and converted for analysis or logging.
Automotive Sensor Monitoring
In automotive test and measurement equipment, the MX7582KN can digitize signals from multiple sensors (voltage, current, position) with 12-bit precision, supporting engine control and diagnostics within its 0°C to 70°C range.
Medical Instrumentation
The device's 4-channel input capability is suitable for patient monitoring systems that track multiple physiological parameters, converting analog biosignals into digital data for processing and display.
Battery Management Systems
The MX7582KN can monitor individual cell voltages in a battery pack, using its multiplexed inputs to sequentially measure each cell with 12-bit accuracy, ensuring balanced charging and safe operation.
- Q: What type of ADC is the MX7582KN?
- A: The MX7582KN is a 12-bit analog-to-digital converter with a MUX-ADC architecture, integrating a multiplexer and converter.
- Q: What is the resolution of the MX7582KN?
- A: The MX7582KN provides 12-bit resolution, offering 4096 discrete output levels for precise signal digitization.
- Q: How many input channels does the MX7582KN support?
- A: It features 4 multiplexed input channels, allowing multiple analog signals to be digitized sequentially.
- Q: What interface does the MX7582KN use?
- A: It uses a parallel interface for high-speed data transfer to microcontrollers or DSPs.
- Q: What is the operating temperature range?
- A: The MX7582KN operates from 0°C to 70°C, suitable for commercial applications.
- Q: What package is the MX7582KN available in?
- A: It comes in a 28-pin DIP (0.600", 15.24mm) package, ideal for through-hole PCB mounting.
