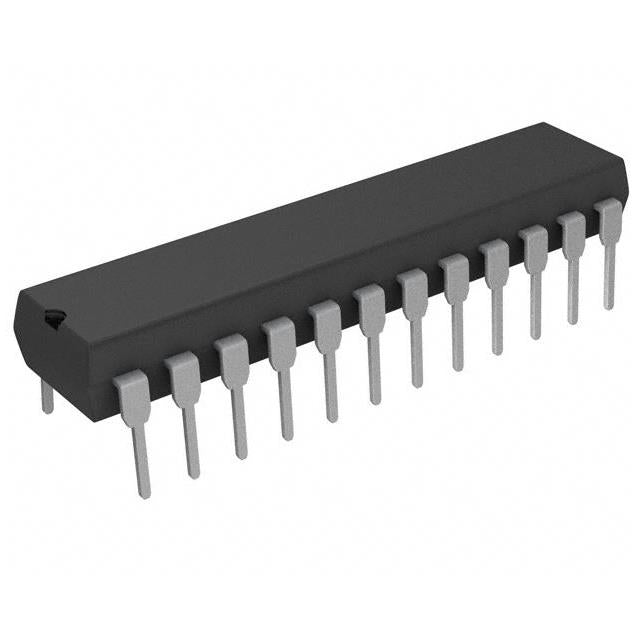

Analog Devices Inc./Maxim Integrated MX7672KN10+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $171.60 | $171.60 |
| 15+ | $41.99 | $629.85 |
| 25+ | $41.08 | $1,027.00 |
| 50+ | $38.79 | $1,939.50 |
| 100+ | $34.23 | $3,423.00 |
| N+ | $6.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 308k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | -13.2V ~ -10.8V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -13.2V ~ -10.8V, 4.75V ~ 5.25V |
| Features | Internal Oscillator |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
The MX7672KN10 is a 12-bit analog-to-digital converter from Analog Devices/Maxim Integrated, offering a balanced combination of speed and precision. With a sampling rate of 308k SPS and a single input channel, it provides reliable conversion for a wide range of applications. The parallel interface ensures easy integration with microcontrollers and DSPs. It requires an external reference, giving designers control over the voltage range. Packaged in a 24-pin DIP, it is suitable for through-hole PCB designs and operates within a commercial temperature range of 0°C to 70°C.
- Proven 12-bit Performance: Delivers 4096 levels of resolution, suitable for most industrial and instrumentation applications.
- Moderate Speed: 308k SPS is adequate for many real-time control and monitoring systems without excessive power draw.
- Simple Parallel Interface: Easy to connect to standard microprocessors and logic, reducing design complexity.
- Through-Hole Package: 24-DIP package is easy to solder and replace, ideal for prototyping and maintenance.
- External Reference: Allows for precise scaling of input range to match sensor output.
Industrial Process Control
The 12-bit resolution and 308k SPS sampling rate are well-suited for industrial process control loops, providing accurate digitization of sensor signals for PLCs and microcontrollers.
Data Acquisition Systems
In multi-channel DAQ systems, this ADC's parallel interface simplifies connection to microprocessors. The external reference allows for ratiometric measurements.
Battery-Powered Instruments
The low power consumption of the MX7672KN10 makes it ideal for portable instruments like multimeters and data loggers, where battery life is critical.
Automotive Sensor Interfaces
With a 0°C to 70°C temperature range, it can be used in automotive test equipment and sensor conditioning circuits, converting analog signals from temperature and pressure sensors.
Educational and Hobbyist Projects
The DIP package is breadboard-friendly, making it excellent for prototyping and educational purposes in digital electronics courses.
Legacy System Upgrades
For systems using older 8-bit ADCs, this 12-bit device offers a drop-in upgrade path with improved accuracy, using the same parallel interface.
- Q: What is the resolution of the MX7672KN10?
- A: The MX7672KN10 is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 308k SPS (samples per second).
- Q: How many channels does it have?
- A: It is a single-channel (1 channel) ADC.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 24-DIP (0.300", 7.62mm) package.
