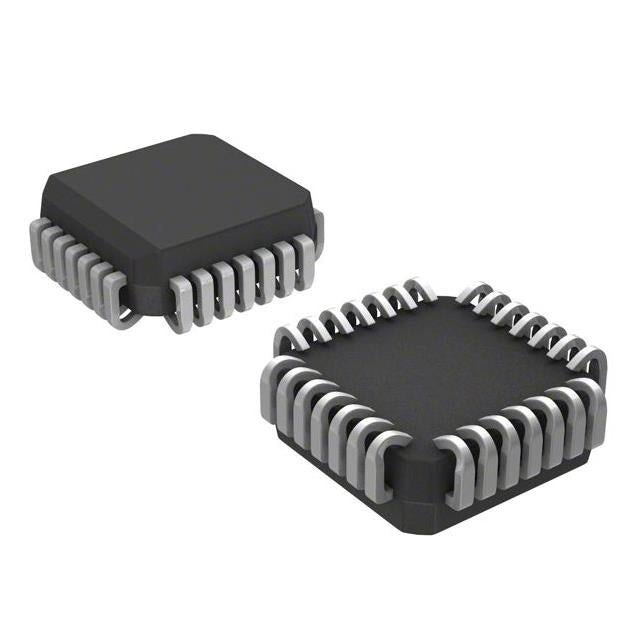

Analog Devices Inc./Maxim Integrated MX7672KP10+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $200.84 | $200.84 |
| 15+ | $32.30 | $484.50 |
| 25+ | $31.60 | $790.00 |
| 50+ | $29.84 | $1,492.00 |
| 100+ | $26.33 | $2,633.00 |
| N+ | $5.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 308k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | -13.2V ~ -10.8V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -13.2V ~ -10.8V, 4.75V ~ 5.25V |
| Features | Internal Oscillator |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.5x11.5) |
The MX7672KP10 from Analog Devices/Maxim Integrated is a 12-bit analog-to-digital converter with a sampling rate of 308 kSPS. Featuring a single channel and parallel interface, it is designed for straightforward integration into a variety of systems. The device relies on an external reference and uses an S/H-ADC architecture for accurate sampling. Housed in a 28-LCC (J-Lead) package, it operates within a temperature range of 0°C to 70°C. This ADC is well-suited for industrial control, data acquisition, and consumer applications where reliable mid-speed conversion is required.
- Proven 12-Bit Performance: Delivers reliable accuracy for general-purpose applications.
- Parallel Interface: Simple connection to microprocessors and DSPs.
- External Reference: Allows user-defined voltage range for flexibility.
- Compact LCC Package: Suitable for space-constrained designs.
- Cost-Effective Solution: Balances performance and price for volume applications.
Industrial Process Control
The 12-bit resolution and 308 kSPS rate are suitable for monitoring temperature and pressure in manufacturing plants, providing reliable data for control loops.
Data Acquisition Systems
With a parallel interface, this ADC easily connects to legacy microprocessors in laboratory data logging equipment.
Automotive Test Equipment
The 0°C to 70°C range makes it suitable for benchtop testing of automotive sensors in development labs.
Battery Monitoring Systems
In energy management, the ADC digitizes voltage and current with sufficient accuracy for state-of-charge estimation.
Consumer Electronics
For audio and instrumentation applications, the 12-bit output provides good dynamic range for cost-sensitive designs.
- Q: What is the resolution of the MX7672KP10?
- A: This ADC offers 12-bit resolution.
- Q: What is the sampling rate?
- A: It operates at 308 kSPS (308k samples per second).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a parallel digital output interface.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H-ADC) architecture.
- Q: What package is it available in?
- A: It comes in a 28-LCC (J-Lead) package.
