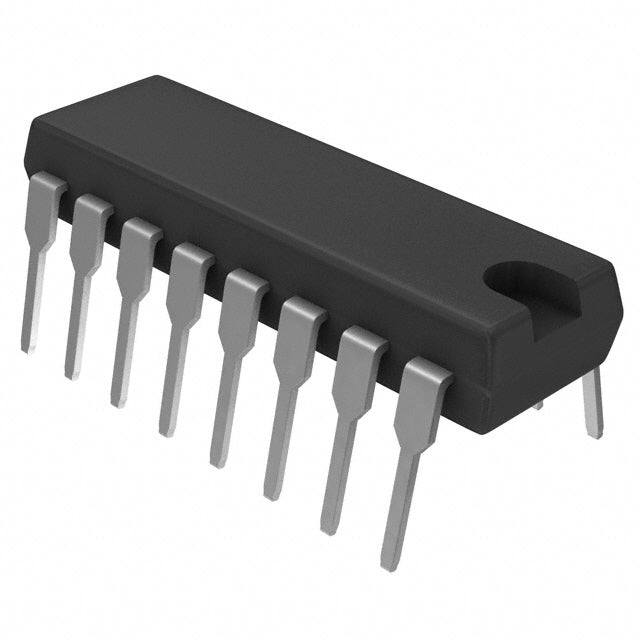

Analog Devices Inc./Maxim Integrated MX7705EPE+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.86 | $17.86 |
| 15+ | $17.30 | $259.50 |
| 25+ | $16.92 | $423.00 |
| 50+ | $15.98 | $799.00 |
| 100+ | $14.10 | $1,410.00 |
| N+ | $2.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| ROHS |  |
The MX7705EPE+ from Analog Devices/Maxim Integrated is a 16-bit analog-to-digital converter with a sampling rate of 500 SPS. It features 2 input channels and a PGA-ADC architecture with external reference for high-precision measurements. The SPI interface provides simple digital connectivity. Housed in a 16-DIP package, it operates from -40°C to 85°C, making it suitable for industrial sensors, portable instrumentation, and process control applications.
- High precision: 16-bit resolution for accurate low-level signal measurement.
- Integrated PGA: Amplifies small sensor signals without external circuitry.
- Simple SPI interface: Easy integration with microcontrollers.
- Dual channels: Allows monitoring of two sensors with one device.
Precision Industrial Sensors
The 16-bit resolution and PGA-ADC architecture make it ideal for accurate measurement of temperature, pressure, and flow sensors.
Portable Instrumentation
Low power consumption and SPI interface support battery-powered handheld measurement devices.
Process Control Loops
With 500 SPS sampling and 2 channels, it can monitor and control slow industrial processes.
Weighing and Force Measurement
High resolution enables precise weight and force sensing in industrial and laboratory scales.
Environmental Monitoring
External reference and PGA allow accurate digitization of environmental sensors like humidity and gas detectors.
- Q: What is the resolution of the MX7705EPE+?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 500 SPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interfaces are supported?
- A: It supports SPI interface.
- Q: What is the architecture?
- A: It uses a PGA-ADC architecture with external reference.
- Q: What is the package type?
- A: It comes in a 16-DIP package.
