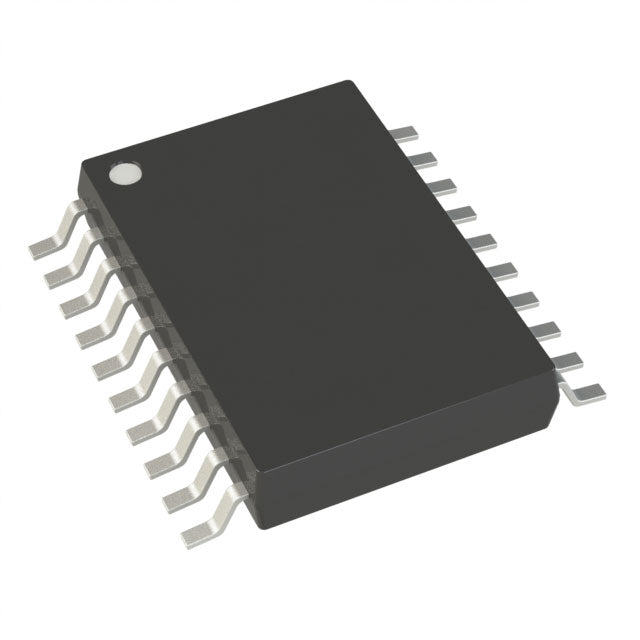

Nuvoton Technology Corporation N76E885AT20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | N76 |
| Packaging | | Tray |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I2S, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 18KB (18K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The N76E885AT20 is an 8-bit 8051 microcontroller from Nuvoton. It operates at 25MHz with 18KB flash and 512 bytes RAM. The device includes I2S, PWM, WDT, and brown-out detection. Housed in a compact 20-TSSOP package, it runs from 2.4V to 5.5V. This MCU is suited for space-constrained applications requiring audio or mixed-signal interfaces.
- Integrated I2S: Simplifies audio interface design.
- Compact 20-TSSOP: Saves board space in portable devices.
- 25MHz 8051 core: Faster processing for 8-bit applications.
- Comprehensive protection: Brown-out detect and WDT improve reliability.
Audio Processing Modules
The I2S interface enables direct connection to audio codecs for voice or tone generation.
Compact Sensor Hubs
The 20-TSSOP package fits small PCBs while the 25MHz core handles multiple sensor protocols.
Battery Management
Wide voltage range and low power make it suitable for battery monitoring in portable devices.
LED Lighting Controllers
PWM outputs drive LED dimming with high resolution.
Industrial I/O Modules
Brown-out detection and WDT ensure reliable operation in factory automation.
Consumer Remote Controls
Small footprint and low cost make it ideal for IR remote transmitters.
- Q: What is the package of the N76E885AT20?
- A: It comes in a 20-TSSOP package.
- Q: What core does it use?
- A: It uses the 8051 core at up to 25MHz.
- Q: How much flash memory is available?
- A: It has 18KB flash memory.
- Q: Does it support I2S?
- A: Yes, it includes an I2S interface.
- Q: What is the voltage range?
- A: It operates from 2.4V to 5.5V.
