Nuvoton Technology Corporation N79E715AT20
Normaler Preis
$94,999.99
Normaler Preis
$99,999.99
Verkaufspreis
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | N79 |
| Packaging | | Tray |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, KBI, LCD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |

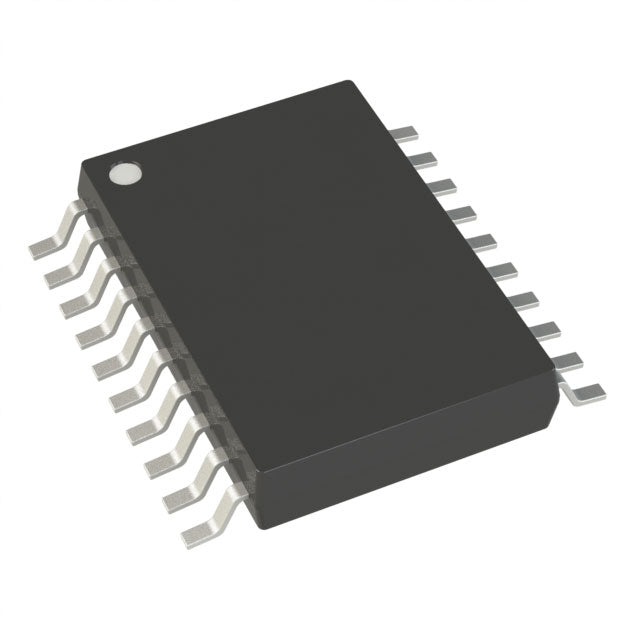

The Nuvoton N79E715AT20 is an 8051 microcontroller in a compact 20-pin TSSOP. It runs at 24MHz with 16KB flash and 512B RAM, operating from 2.4V to 5.5V. Features include brown-out detection, watchdog timer, and PWM, ideal for space-constrained portable designs.
- TSSOP-20 – 50% smaller than SOIC, ideal for miniaturized PCBs.
- 2.4V minimum – works with single-cell alkaline or Li-ion.
- Integrated KBI – reduces external pull-up resistors.
- 24MHz 8051 – code-compatible with legacy designs.
Wearable Health Monitors
TSSOP package is ultra-thin for PCB stacking; 2.4V operation extends battery life.
Portable Instruments
20 pins fit compact enclosures; PWM drives buzzer and backlight.
IoT End Nodes
Low pin count reduces cost; 16KB flash stores communication protocols.
Security Keypads
KBI scans matrix keys; BOD prevents lockout during voltage dips.
LED Lighting Drivers
PWM outputs control dimming; 5.5V tolerance simplifies power supply.
Small Appliances
WDT ensures reset on firmware hang; -40°C rating for outdoor use.
- Q: What package is this?
- A: 20-pin TSSOP (4.40mm width).
- Q: What is the supply voltage?
- A: 2.4V to 5.5V.
- Q: How much flash memory?
- A: 16KB with 512B RAM.
- Q: Does it have a watchdog timer?
- A: Yes, WDT is included.
Base Product Number ：
N79E715
